Motor 구동형 케이블릴

Magenet Coupler
구동형 케이블릴

  • Flange Motor 사용
  • 영구자석 Block과 Disk 자력에 의한 Torque 발생 구조
  • 비접촉식 Coupling 방식의Torque 전달 구조
  • Air Gap에 따른 Torque 가변이가능한구조
  • Magnet Housing은열발산을 위하여특수알루미늄 Fan 구조
  • Compact Size로유지보수가 용이한 구조
  • 자력구동으로 인한 Cable 과장력 방지



Magenet Coupler 현장설치 사진
STANDARD EXPLANATION
Magnet Coupler 구성품
  • Flange Motor
  • Back Stop Bearing
  • Jaw Coupling
  • Magnet Disk
  • Magnet Block
  • Planetary
  • Secondary Gear Box
  • Bevel Main Gear Box

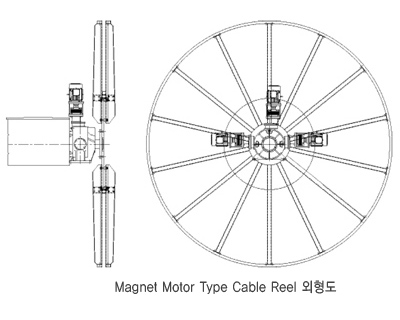

Magenet Coupler 외형도
TYPE SKMD1 - L
TORQUE MAX. 45Kg-m
CABLE SPEC. 8sq x 4c∼38sq x 4c
CABLE LENGTH 50m ∼ 100m
TYPE SKMD1 - M1
TORQUE MAX. 70Kg-m
CABLE SPEC. 14sq x 4c∼60sq x 4c
CABLE LENGTH 50m ∼ 100m
TYPE SKMD1 - M2
TORQUE MAX. 140kg-m
CABLE SPEC. 38sq x 4c∼100sq x 4c
CABLE LENGTH 50m ∼ 100m
TYPE SKMD1 - M3
TORQUE MAX. 210Kg-m
CABLE SPEC. 60sq x 4c∼200sq x 4c
CABLE LENGTH 50m ∼ 150m
Magenet Coupler 제품도면
Magenet Coupler 제품사양표
TYPE TORQUE CABLE SPEC. WINDING SPEED FEEDING METHOD Acceleration Time
SKMD1L1V-2220-3 Max. 50kg-m PNCT 22SQ*4C Max. 50m/min Vertical
Feeding Type		 1.0 sec.
SKMD1L2V-2530-4 Max. 80kg-m PNCT 25SQ*4C Max. 25m/min Vertical
Feeding Type		 1.0 sec.
SKMD1M2V-3545-4 Max. 90kg-m PNCT 35SQ*4C Max. 20m/min Vertical
Feeding Type		 1.0 sec.
SKMD1L1H-2550-4F Max. 40kg-m PNCT-F 25SQ*4C Max. 30m/min Horizontal
Feeding Type		 3.0 sec.
SKMD1L2H-9570-4F Max. 75kg-m PNCT-F 95SQ*4C Max. 40m/min Horizontal
Feeding Type		 3.0 sec.
SKMD1M1H-120100-4S Max. 90kg-m PNCT-F 120SQ*4C Max. 50m/min Horizontal
Feeding Type		 3.0 sec.
