RWA-SK series
- Standard Reels
- Industrial water hose reels
RWA-SK series
Product Explanation

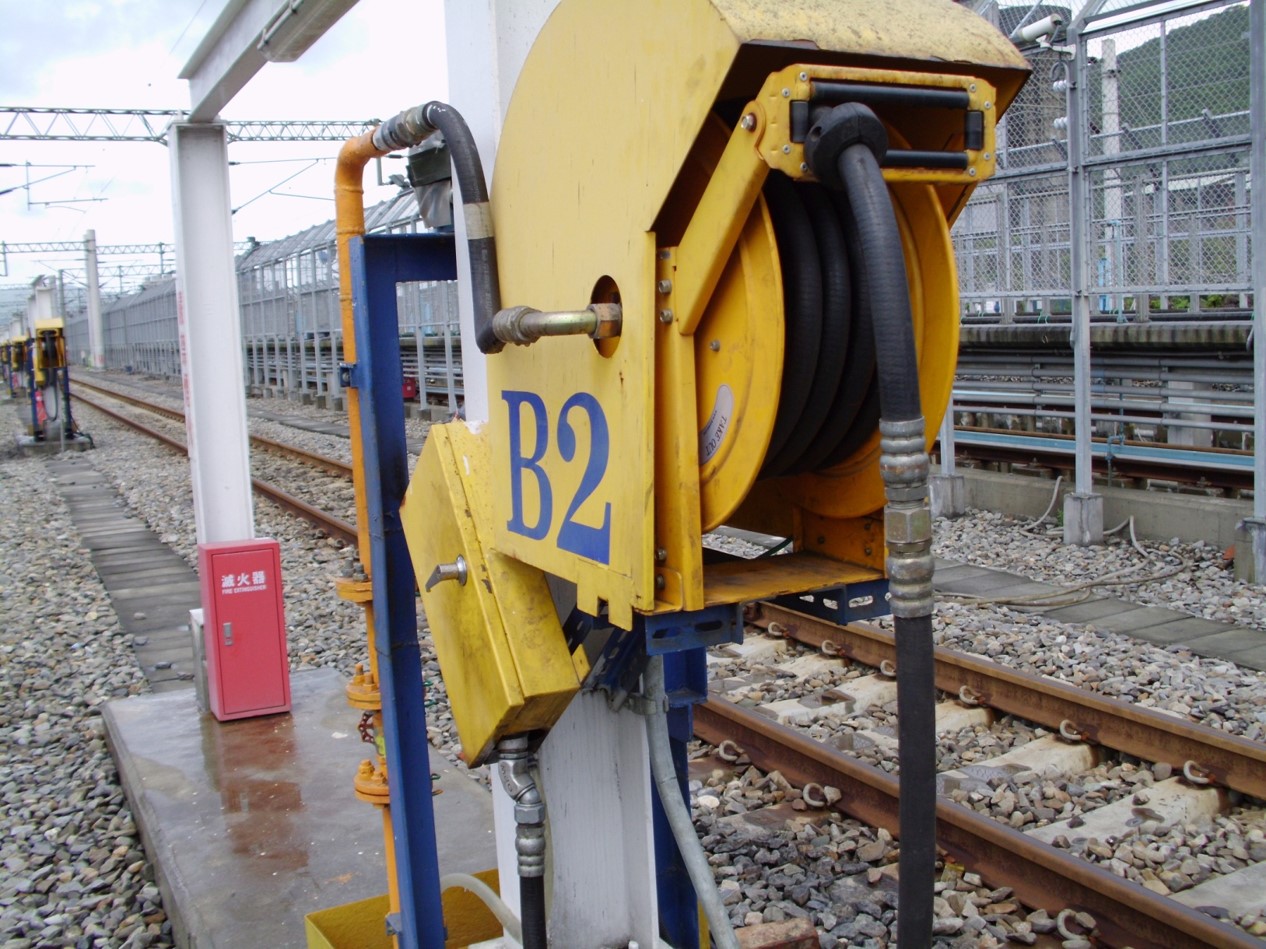

Use : Food industry, Construction site, Various industrial workshop
Feature : Strong frame, Long last sealing, High tension spring

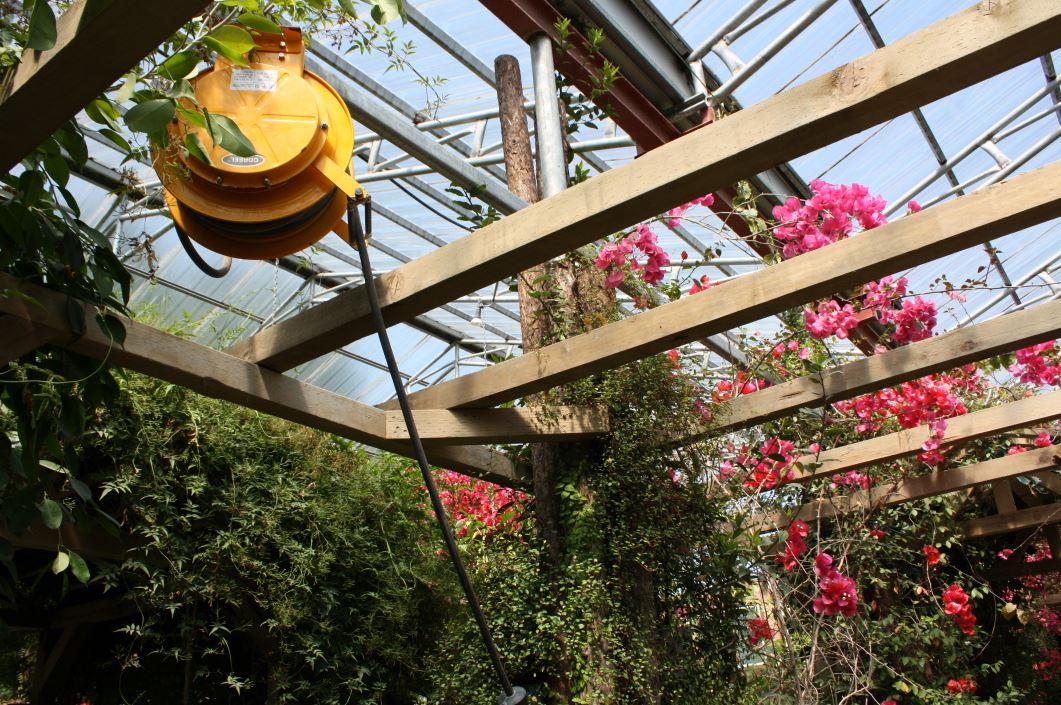

Installation : Wall, Floor(Within 2M height)

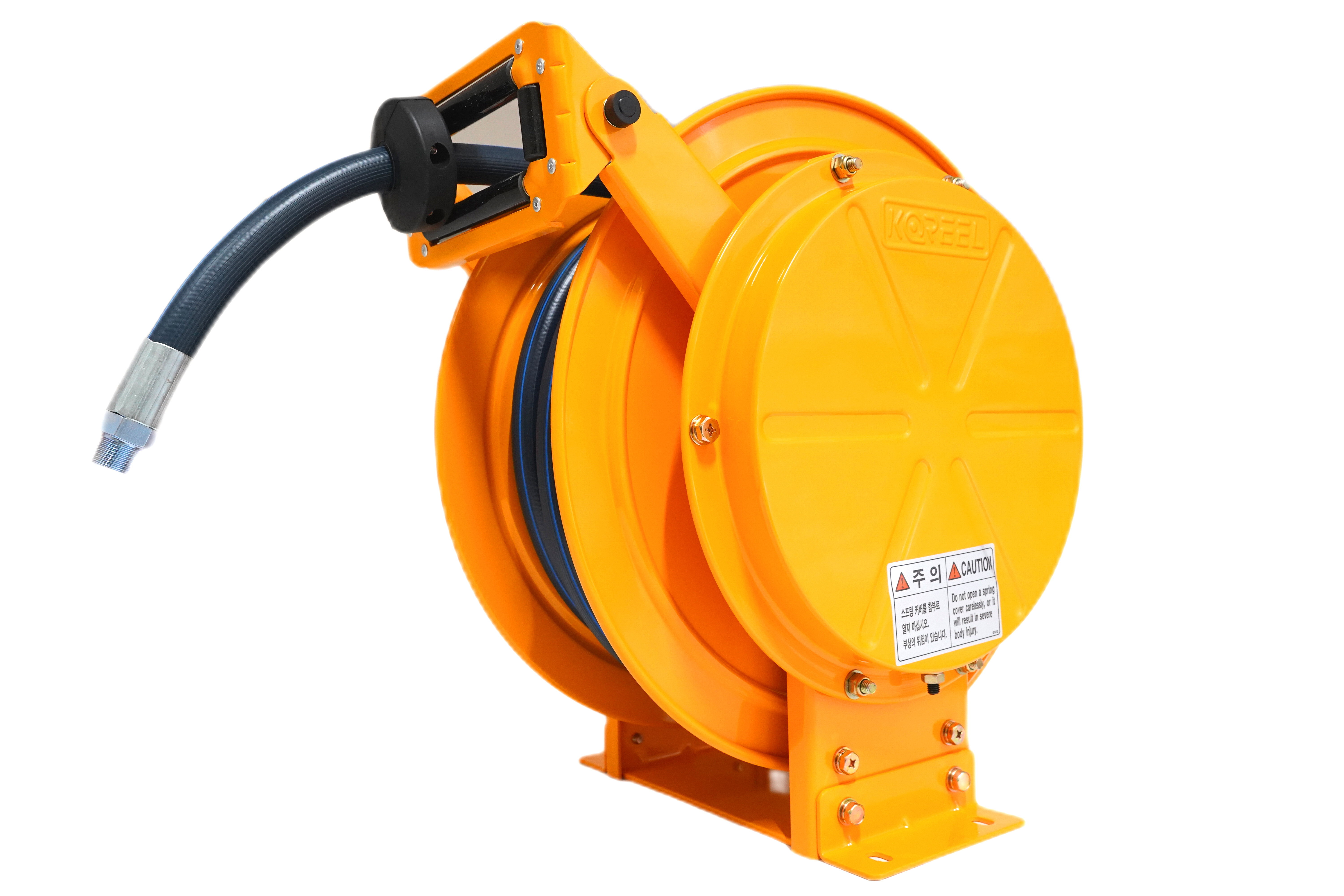

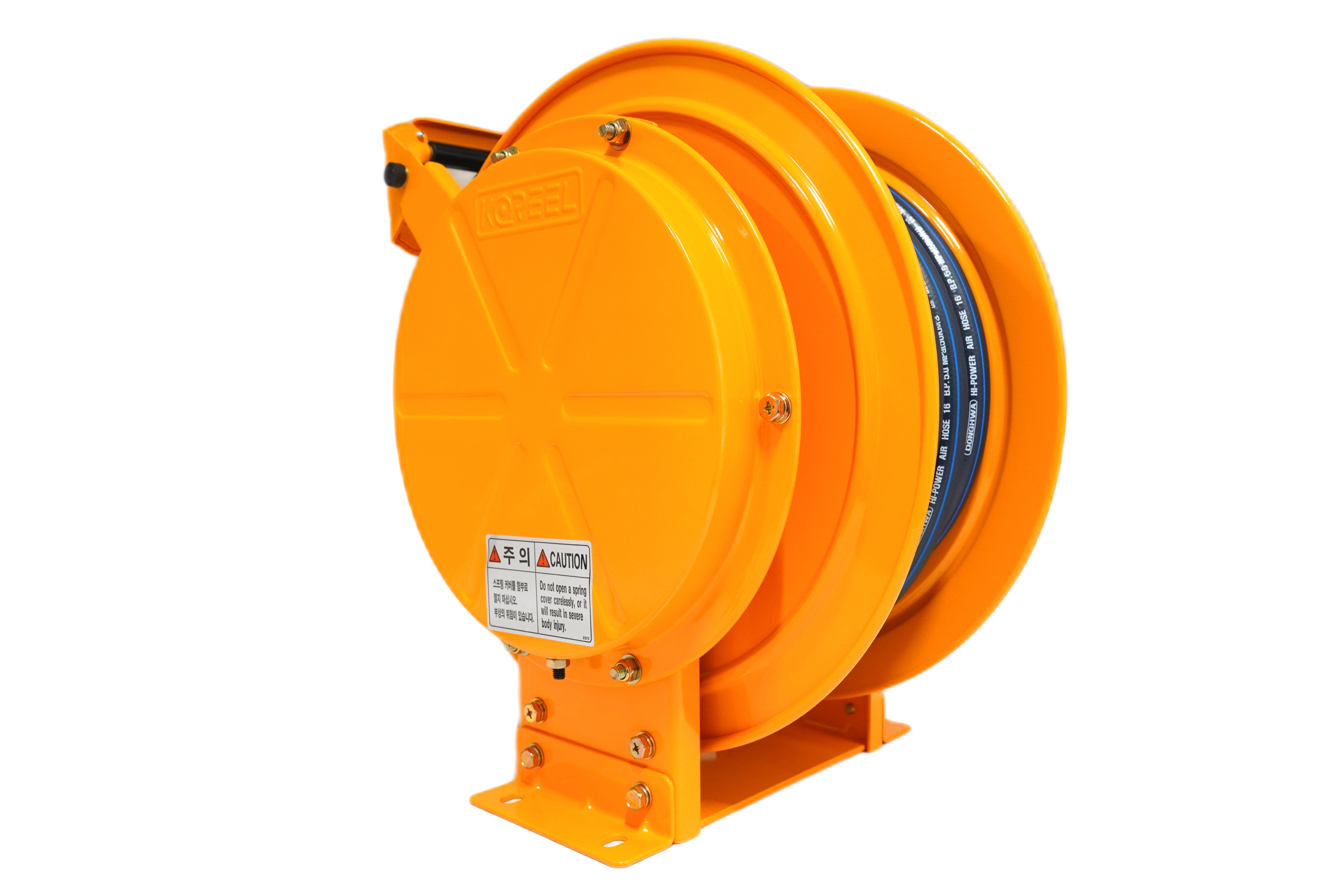

It is an automatic winding type water hose reel for cold water only.
There is a corrosion resistance stainless hose reel according to use and function.
There are various reels such as hose reel for a drink, hose reel for balcony, water reel of high pressure.
is designed for special truck and fire truck by custom order.

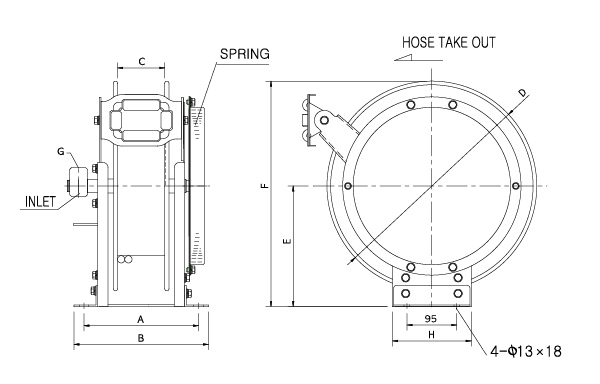

The drawings of RWA-SK Series
The specification of RWA-SK Series
| MODEL | Hose | W.P Max(kg/㎠) |
Dimensions(mm) | Weight (kg) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | A | B | C | D | E | F | G | H | |||
| RWA-1310 | Synthetic Rubber | 13 | 10 | 20 | 278 | 318 | 150 | 400 | 230 | 430 | PT1/2" | 150 | 19 |
| RWA-1315 | Synthetic Rubber | 13 | 15 | 20 | 278 | 318 | 150 | 400 | 230 | 430 | PT1/2" | 150 | 21 |
| RWA-1320 | Synthetic Rubber | 13 | 20 | 20 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/2" | 150 | 27 |
| RWA-1325 | Synthetic Rubber | 13 | 25 | 20 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/2" | 200 | 30 |
| RWA-1330 | Synthetic Rubber | 13 | 30 | 20 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/2" | 200 | 32.4 |
| RWA-1340 | Synthetic Rubber | 13 | 40 | 20 | 338 | 378 | 210 | 500 | 290 | 540 | PT1/2" | 200 | 40 |
| RWA-1610 | Synthetic Rubber | 16 | 10 | 20 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/2" | 150 | 26 |
| RWA-1615 | Synthetic Rubber | 16 | 15 | 20 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/2" | 200 | 29 |
| RWA-1620 | Synthetic Rubber | 16 | 20 | 20 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/2" | 200 | 32 |
| RWA-1625 | Synthetic Rubber | 16 | 25 | 20 | 338 | 378 | 210 | 500 | 290 | 540 | PT1/2" | 200 | 36 |
| RWA-1630 | Synthetic Rubber | 16 | 30 | 20 | 338 | 378 | 210 | 500 | 290 | 540 | PT1/2" | 200 | 40 |
| RWA-1640 | Synthetic Rubber | 16 | 40 | 20 | 338 | 378 | 210 | 550 | 315 | 590 | PT1/2" | 200 | 45 |
| RWA-1910 | Synthetic Rubber | 19 | 10 | 20 | 338 | 378 | 210 | 450 | 290 | 515 | PT3/4" | 200 | 28.7 |
| RWA-1915 | Synthetic Rubber | 19 | 15 | 20 | 338 | 378 | 210 | 450 | 290 | 515 | PT3/4" | 200 | 34 |
| RWA-1920 | Synthetic Rubber | 19 | 20 | 20 | 338 | 378 | 210 | 500 | 290 | 540 | PT3/4" | 200 | 38 |
| RWA-1925 | Synthetic Rubber | 19 | 25 | 20 | 338 | 378 | 210 | 550 | 315 | 590 | PT3/4" | 200 | 42 |
| RWA-1930 | Synthetic Rubber | 19 | 30 | 20 | 338 | 378 | 210 | 550 | 315 | 590 | PT3/4" | 200 | 45 |
| RWA-2510 | Synthetic Rubber | 25 | 10 | 20 | 338 | 378 | 210 | 450 | 290 | 515 | PT1" | 200 | 35 |
| RWA-2515 | Synthetic Rubber | 25 | 15 | 20 | 338 | 378 | 210 | 500 | 315 | 565 | PT1" | 200 | 38 |
| RWA-2520 | Synthetic Rubber | 25 | 20 | 20 | 408 | 448 | 280 | 500 | 315 | 565 | PT1" | 200 | 43.6 |
| RWA-2525 | Synthetic Rubber | 25 | 25 | 20 | 408 | 448 | 280 | 550 | 345 | 620 | PT1" | 200 | 48.6 |
| RWA-2530 | Synthetic Rubber | 25 | 30 | 20 | 408 | 448 | 280 | 550 | 345 | 620 | PT1" | 200 | 50.5 |
