Use : Gas welding, Cutting
Features : Solid frame, Built-in spring
Installation : Wall, Floor(Within 2M height)
Gas hose Reel helps to handle the oxygen and LPG(or acetylene gas) containers safely at work sites and prevent negligent accidents.
It is designed to load any gas containers on the carriage so as not to fall down.
There is no gas leakage either at maximum pressure(15kg/㎠) or at minimum pressure and then its safety is guaranteed.
It can be organized simply.

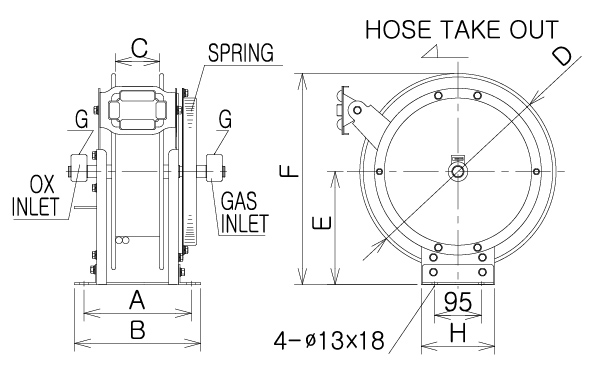

P.Number | MODEL | Hose | W.P | External Size | Weight (kg) |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Material | I.D (mm) |
L(m) | Max (kg/㎠) |
A | B | C | D | E | F | G | H | |||
5000004 | RGA-620 | Rubber Hose | 4.8 | 20 | 10 | 238 | 278 | 110 | 400 | 230 | 430 | PT1/4" | 150 | 24 |
5000005 | RGA-625 | Rubber Hose | 4.8 | 25 | 10 | 238 | 278 | 110 | 450 | 260 | 485 | PT1/4" | 150 | 29 |
5000006 | RGA-630 | Rubber Hose | 4.8 | 30 | 10 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/4" | 150 | 32 |
5000007 | RGA-815 | Rubber Hose | 8 | 15 | 10 | 278 | 318 | 150 | 400 | 230 | 430 | PT1/4" | 150 | 24.7 |
5000008 | RGA-820 | Rubber Hose | 8 | 20 | 10 | 278 | 318 | 150 | 450 | 260 | 485 | PT1/4" | 150 | 28 |
5000021 | RGA-825 | Rubber Hose | 8 | 25 | 10 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/4" | 150 | 33 |
5000009 | RGA-830 | Rubber Hose | 8 | 30 | 10 | 278 | 318 | 150 | 500 | 290 | 540 | PT1/4" | 150 | 36 |
P.Number | MODEL | Hose | W.P | ||
---|---|---|---|---|---|
Material | I.D(mm) | L(m) | Max(kg/㎠) | ||
5000101 | RGA-081303H | Special Mesh Wire | 13+9.5 | 30 | 60 |
5000102 | RGA-081304H | Special Mesh Wire | 13+9.5 | 40 | 60 |
5000105 | RGA-03000H | Heat-resistant high-pressure gas hose | 13+8 | 31 | 60/45 |
