RGCA Single series
Product Explanation

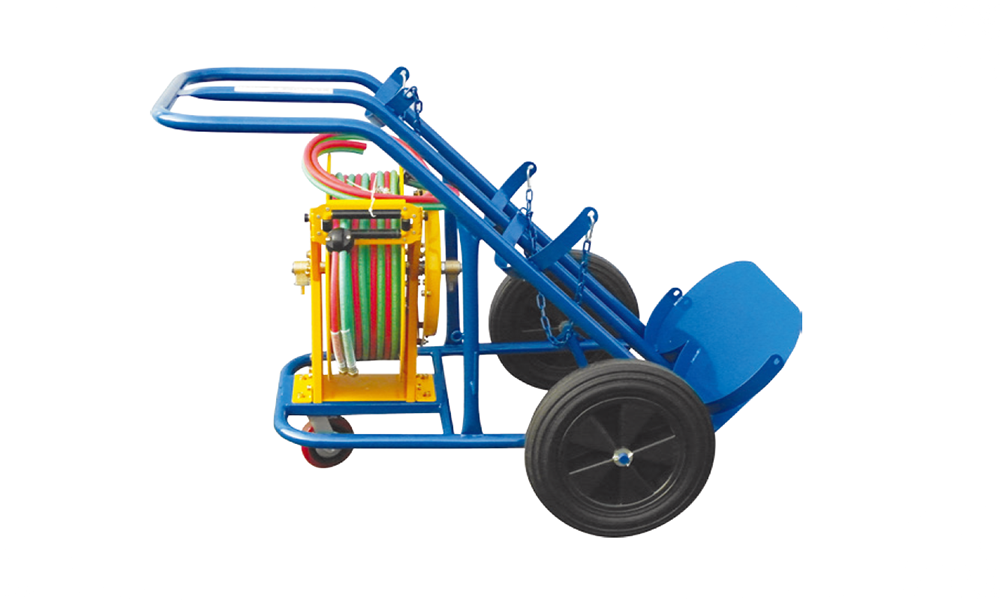

Gas hose Reel helps to handle the oxygen and LPG(or acetylene gas) containers safely at work sites and prevent negligent accidents.
It is designed to load any gas containers on the carriage so as not to fall down.
There is no gas leakage either at maximum pressure(15kg/㎠) or at minimum pressure and then its safety is guaranteed.
It can be organized simply.

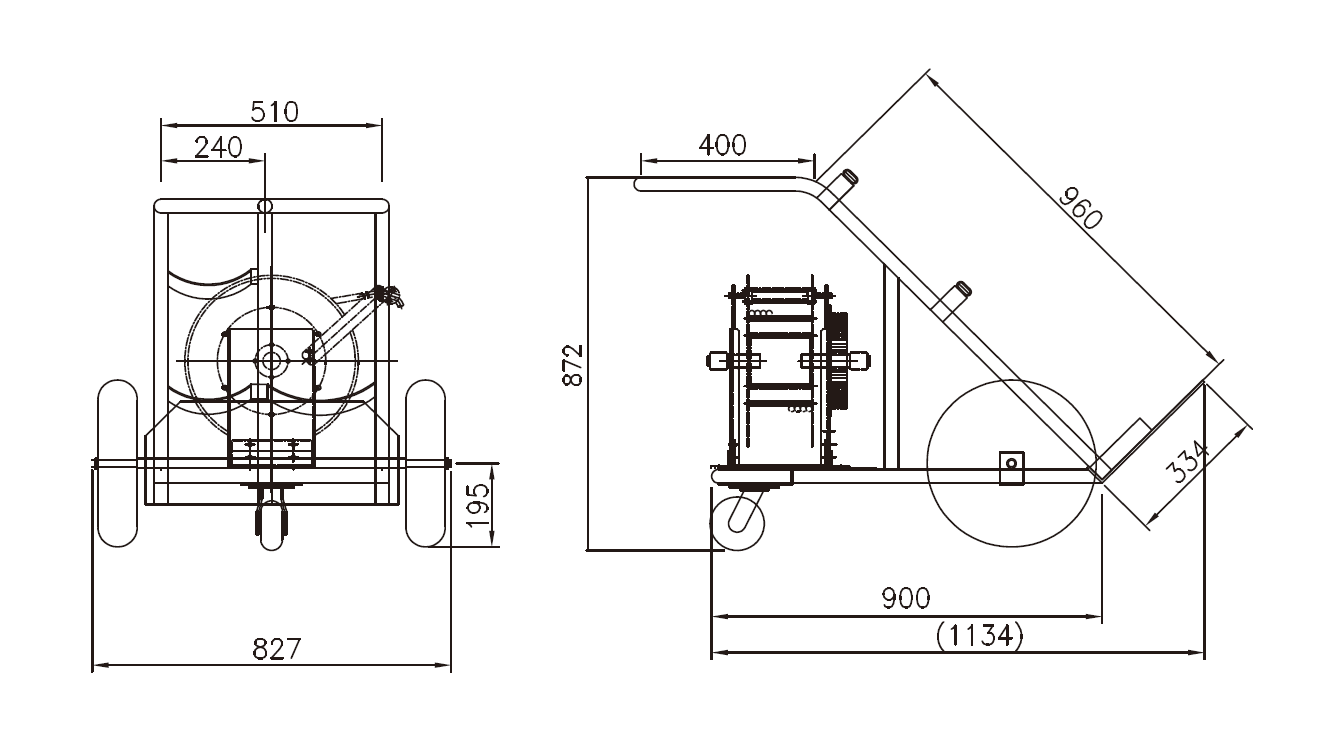

The drawings of RGCA Series
The specification of RGCA Series
| Model | Carriage Specifications | Gas Hose Specifications | Rewind Method | ||||
|---|---|---|---|---|---|---|---|
| Pipe Specifications | Wheel Specification | Inner Diameter(mm) | L(m) | W.P Max(kg/㎠) | Material | ||
| RGCA-820 | Ø32 x 1.4t | 16" Air & 6" Rotation | Ø8 x Ø16 | 20 | 10 | Rubber | Automatic Rewind |
| RGCA-825 | Ø32 x 1.4t | 16" Air & 6" Rotation | Ø8 x Ø16 | 25 | 10 | Rubber | Automatic Rewind |
| RGCA-830 | Ø32 x 1.4t | 16" Air & 6" Rotation | Ø8 x Ø16 | 30 | 10 | Rubber | Automatic Rewind |
