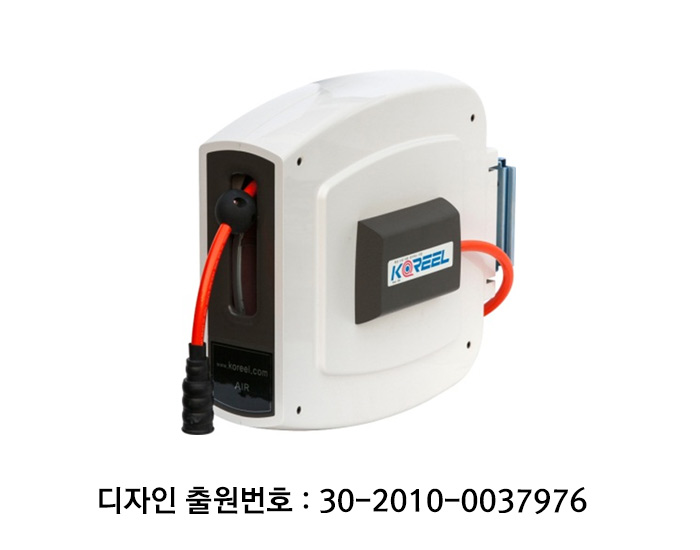

Air hose reels
PAR Series
- Use : Car repair shop, Construction site
- Features : Packaged case, lightweight body, polyurethane braided hose
- Installation : Wall, Celling
- Material : ABS plastic case
Air Hose Reel can be conveniently employed in the industrial sites using pressed air.
It is designed with a flexible air hose and a special spring, which prevents it from leaking and maintains its rolling power.
Additionally, it has simple structure to install and use with ease.
It also raises the work efficiency and keep work places organized.
The drawings of PAR Series
The specification of PAR Series
Model | Hose | W.P | External Size(mm) | |||||
material | I.D-O.D(∅) | L(M) | Max(kg/㎠) | A | B | C | ||
PAR-810 | PU | 8~12 | 10 | 20 | 440 | 360 | 177 | |
PAR-815 | PU | 8~12 | 15 | 20 | 440 | 360 | 177 | |
PAR-820 | PU | 8~12 | 20 | 20 | 440 | 360 | 177 | |
PAR-830 | PU | 8~12 | 30 | 20 | 505 | 421 | 177 | |
PAR-1110 | PU | 11~16 | 10 | 20 | 440 | 360 | 177 | |
PAR-1115 | PU | 11~16 | 15 | 20 | 505 | 421 | 177 | |
PAR-1120 | PU | 11~16 | 20 | 20 | 505 | 421 | 177 | |
PAR-810F | Synthetic Rubber | 8~13 | 10 | 20 | 440 | 360 | 177 | |
PAR-815F | Synthetic Rubber | 8~13 | 15 | 20 | 440 | 360 | 177 | |
PAR-820F | Synthetic Rubber | 8~13 | 20 | 20 | 505 | 421 | 177 | |
PAR-915F | Synthetic Rubber | 9.5~17 | 15 | 20 | 505 | 421 | 177 |
