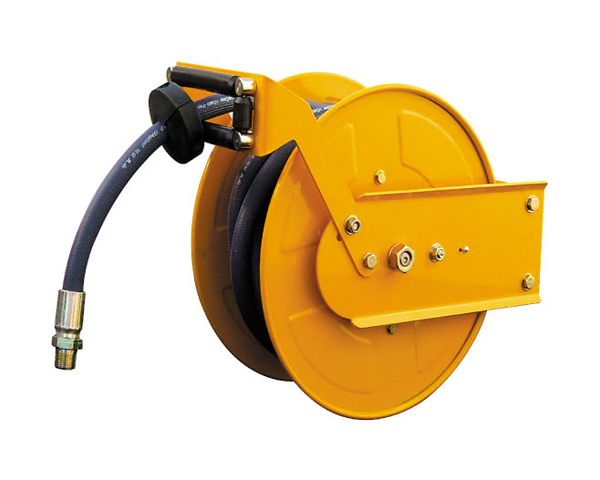

Air hose reels
RA-T Series
- use : Vehicle A/S center, Various workshop
- Feature : Light weight frame, Flexible synthetic hose
- Installation : Wall, Ceiling(Within 4M height, If installed over 4M, it could not rewind.)

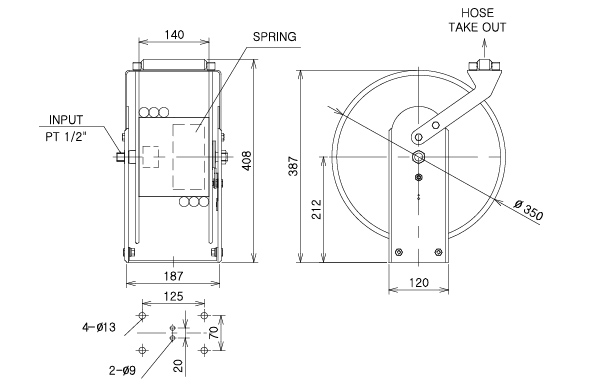

The drawings of RA-T Series
The specification of RA-T Series
| MODEL | Hose | W.P | Weight (kg) |
||
|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | Max(kg/㎠) | ||
| RA-1310T | Synthetic Rubber | 13 | 10 | 10 | 11.5 |
| RA-1315T | Synthetic Rubber | 13 | 15 | 10 | 13.4 |
| RA-1310TS | Synthetic Rubber | 13 | 10 | 10 | 11.5 |
| RA-1315TS | Synthetic Rubber | 13 | 15 | 10 | 13.4 |
