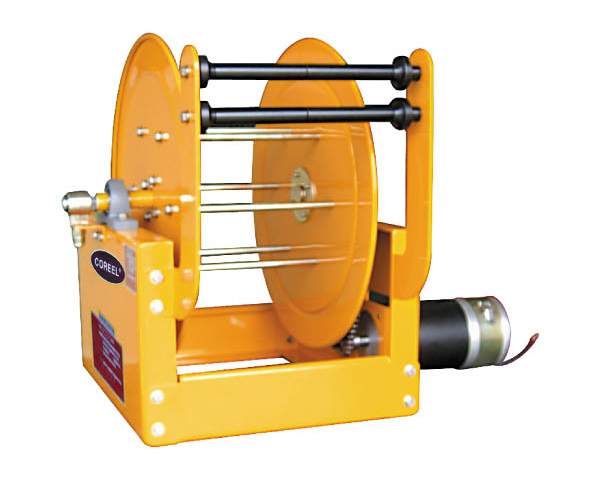

Air hose reels
ASBM Series
- Use : Large Vehicle A/S center, Various workshop, Construction site, Special truck
- Feature : Strong frame, Motor Rewinding(AC/DC)
- Installation : Floor, Vehicle

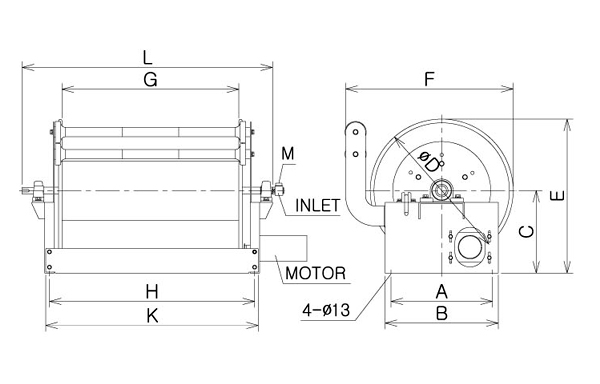

The drawings of ASBM Series
The specification of ASBM Series
| MODEL | Hose | W.P Max(kg/㎠) |
External Size(mm) | Weight (kg) |
Power | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | A | B | C | D | E | F | G | H | K | L | M | ||||
| ASBM-13200 | Synthetic Rubber | 13 | 200 | 15 | 430 | 480 | 350 | 600 | 650 | 710 | 650 | 770 | 800 | 960 | PT1/2" | 46 | DC24V |
| ASBM-16100 | Synthetic Rubber | 16 | 100 | 15 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 910 | PT1/2" | 46 | DC24V |
| ASBM-1950 | Synthetic Rubber | 19 | 50 | 15 | 430 | 480 | 325 | 550 | 600 | 600 | 600 | 720 | 750 | 910 | PT3/4" | 40 | DC24V |
| ASBM-19100 | Synthetic Rubber | 19 | 100 | 15 | 430 | 480 | 350 | 600 | 650 | 710 | 650 | 770 | 800 | 960 | PT3/4" | 46 | DC24V |
| ASBM-2550 | Synthetic Rubber | 25 | 50 | 15 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 910 | PT1" | 46 | DC24V |
| ASBM-25100 | Synthetic Rubber | 25 | 100 | 15 | 430 | 480 | 380 | 650 | 705 | 760 | 750 | 870 | 900 | 1060 | PT1" | 53 | DC24V |
