Air hose reels

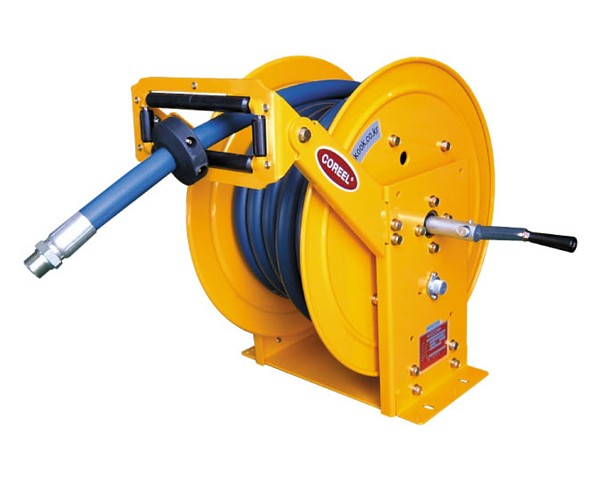

RM-SK Series



  • Use : Large Vehicle A/S center, Various workshop
  • Feature : Strong frame, Manual Rewinding
  • Installation : Floor fixed

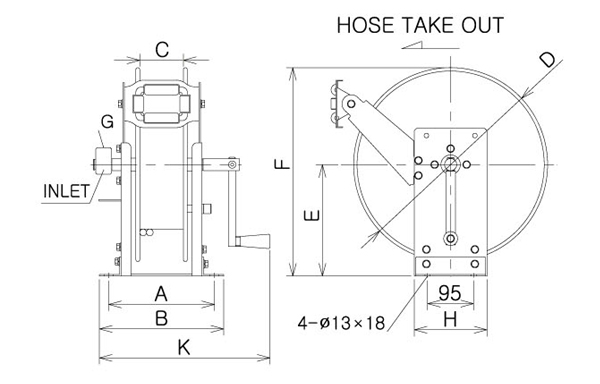

The drawings of RM-SK Series
The specification of RM-SK Series
MODEL Hose W.P
Max(kg/㎠)		 External Size(mm) Weight
(kg)
Material I.D(mm) L(M) A B C D E F G H K
RM-1320 Synthetic Rubber 13 20 15 278 318 150 450 260 485 PT1/2 150 420 17
RM-1330 Synthetic Rubber 13 30 15 278 318 150 500 290 540 PT1/2 150 420 20.4
RM-1340 Synthetic Rubber 13 40 15 338 378 210 500 290 540 PT1/2 200 480 23
RM-1350 Synthetic Rubber 13 50 15 338 378 210 500 290 540 PT1/2 200 480 27
RM-1620 Synthetic Rubber 16 20 15 278 318 150 500 290 540 PT1/2 150 420 20
RM-1630 Synthetic Rubber 16 30 15 338 378 210 500 290 540 PT1/2 200 480 25.2
RM-1640 Synthetic Rubber 16 40 15 338 378 210 550 315 590 PT1/2 200 480 32
RM-1650 Synthetic Rubber 16 50 15 408 448 280 550 345 620 PT1/2 200 550 40
RM-1920 Synthetic Rubber 19 20 15 338 378 210 500 290 540 PT3/4 200 480 26
RM-1930 Synthetic Rubber 19 30 15 338 378 210 550 315 590 PT3/4 200 480 34
RM-1940 Synthetic Rubber 19 40 15 408 448 280 550 345 620 PT3/4 150 550 41
RM-2520 Synthetic Rubber 25 20 15 408 448 280 500 315 565 PT1 200 550 30
RM-2530 Synthetic Rubber 25 30 15 408 448 280 550 345 620 PT1 200 550 36
