Reels for Special Vehicles - Hydraulic Hose Reel
RHE Series
(RHE-TW)
- Customizable depending on usage location and condition
Use on construdction vehicles for signal transmission and power supply to use electrically powered
equuipments by using monolithic hose and cable as multi hose reel.

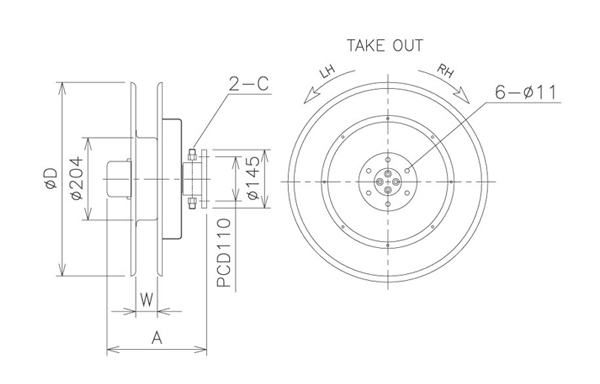

Drawings of RHE-TW
Specification of RHE-TW
| MODEL | Hose Specification | Length(M) | Usage Pressure(kg/㎠) | A | C | D | W | Slip ring |
|---|---|---|---|---|---|---|---|---|
| RHE-610TW-3N | SYNFLEX Ø6.4 ×Ø12.7 × 3way | 10 | 195 | 240 | PT 1/4 | 500 | 43 | 5A × 3P |
| RHE-615TW-4N | SYNFLEX Ø6.4 ×Ø12.7 × 3way | 15 | 195 | 240 | PT 1/4 | 550 | 43 | 10A ×2P + 2A × 2P |
| RHE-620TW-4N | SYNFLEX Ø6.4 ×Ø12.7 × 3way | 20 | 195 | 240 | PT 1/4 | 650 | 43 | 10A ×2P + 2A × 2P |
| RHE-625TW-4N | SYNFLEX Ø6.4 ×Ø12.7 × 3way | 25 | 195 | 240 | PT 1/4 | 700 | 43 | 10A ×2P + 2A × 2P |
| RHE-915TW-3N | SYNFLEX Ø9.5 ×Ø17.5 × 3way | 15 | 210 | 260 | PT 3/8 | 600 | 63 | 5A × 3P |

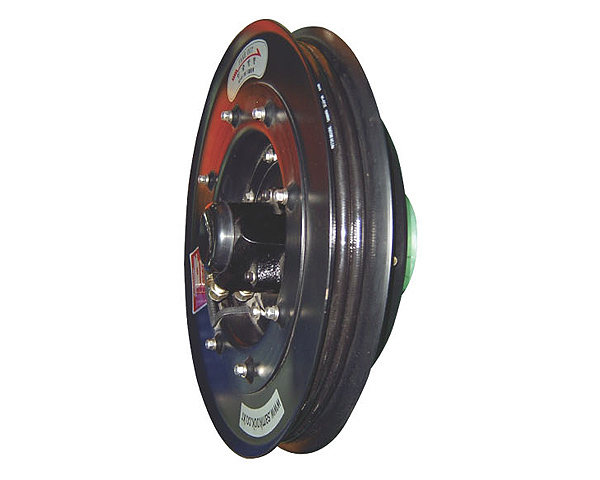

RH Series
(RHE-TW-2)
- Customizable depending on usage location and condition

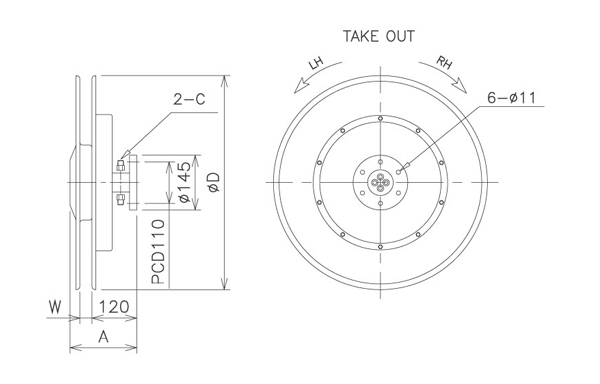

Drawings of RHE-TW-2
Specification of RHE-TW-2
| MODEL | Hose Specification | Length(M) | Usage Pressure(kg/㎠) | A | C | D | W |
|---|---|---|---|---|---|---|---|
| RHE-603TW | SYNFLEX Ø6.4 ×Ø12.7 | 3 | 195 | 202 | PT 1/4 | 320 | 32 |
| RHE-603TW | SYNFLEX Ø6.4 ×Ø12.7 | 5 | 195 | 202 | PT 1/4 | 320 | 32 |
| RHE-603TW | SYNFLEX Ø9.5 ×Ø12.7 | 8 | 195 | 202 | PT 1/4 | 320 | 32 |

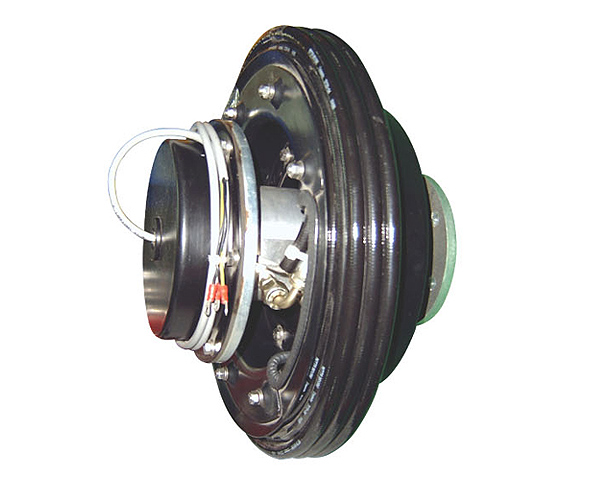

RHE Series
(RHE-TW-3)
- Customizable depending on usage location and condition

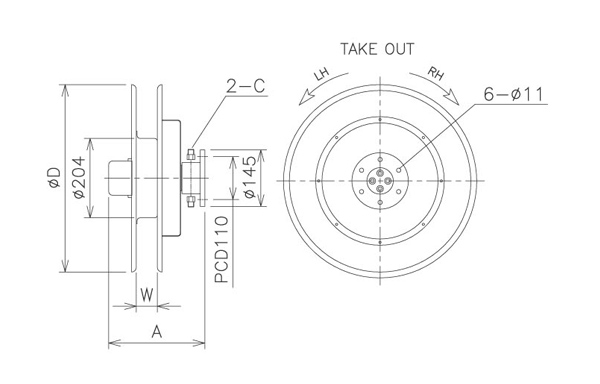

Drawings of RHE-TW-3
Specification of RHE-TW-3
| MODEL | Hose Specification | Length(M) | Usage Pressure(kg/㎠) | A | C | D | W | Slip ring |
|---|---|---|---|---|---|---|---|---|
| RHE-603TW-3 | SYNFLEX Ø6.4 ×Ø12.7 | 3 | 195 | 260 | PT 1/4 | 320 | 42 | 5A × 2P |
| RHE-605TW-3 | SYNFLEX Ø6.4 ×Ø12.7 | 5 | 195 | 260 | PT 1/4 | 350 | 42 | 5A × 2P |
| RHE-608TW-3 | SYNFLEX Ø6.4 ×Ø12.7 | 8 | 195 | 260 | PT 1/4 | 450 | 42 | 5A × 2P |
