Control panel
- 1) Soft start/stop to improve the durability of motor and reducer
- 2) Easy maintenence by using exclusive controler
- 3) Error sign outputs when abnormal current is sensored(by 3 phase drives sensing funtion)
- 4) Acceleration and deceleration are controlable
- 5) Workable Temperature: -20°C ~ 60°C
Usage example

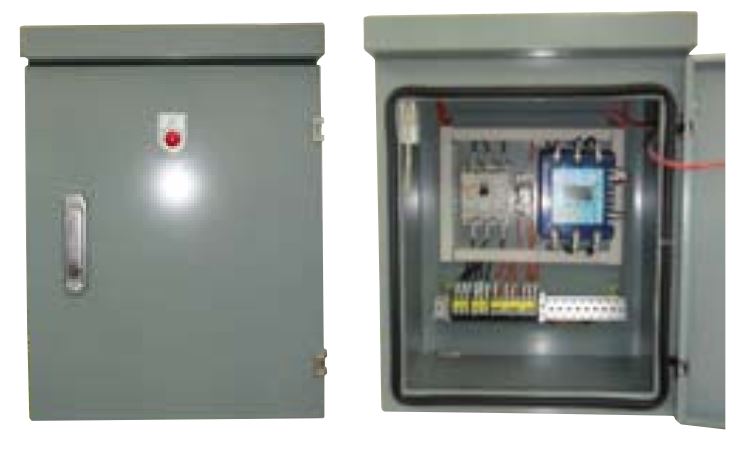

Control box

Control box

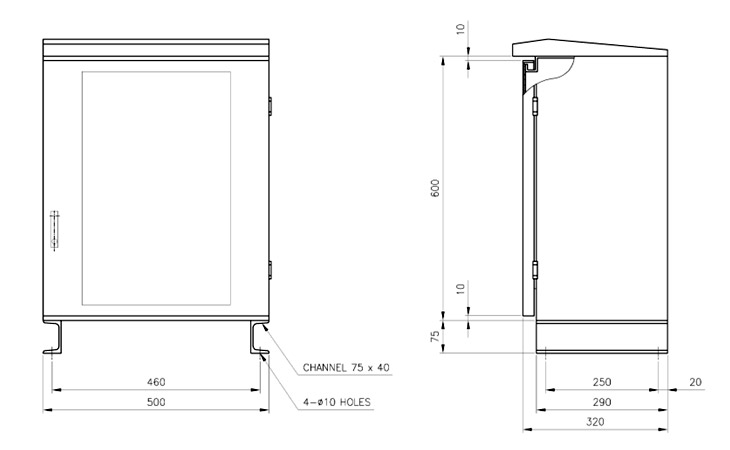

Control box

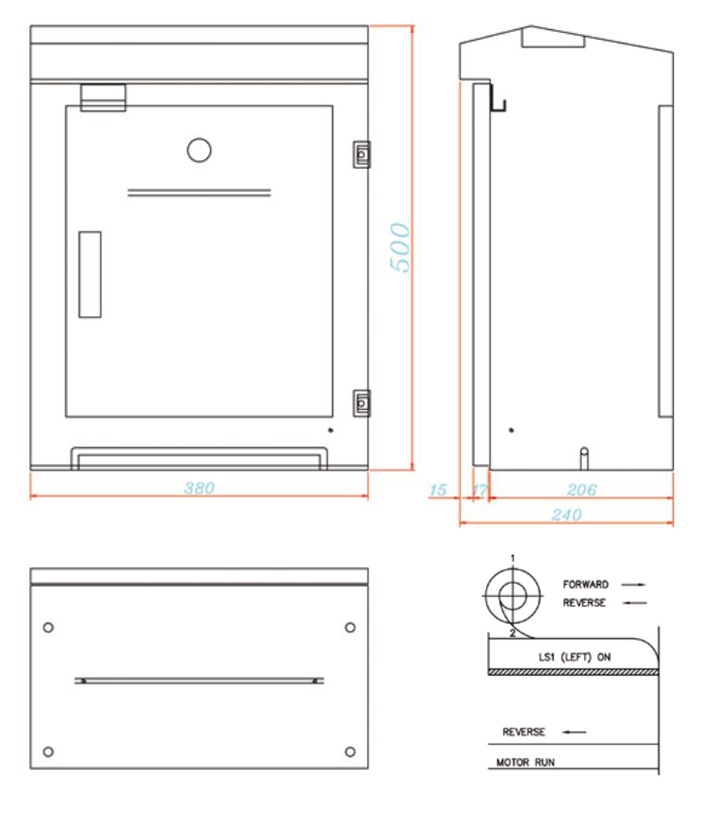

Drawings of Circuit Diagram of SF type panel(One-side power feed)

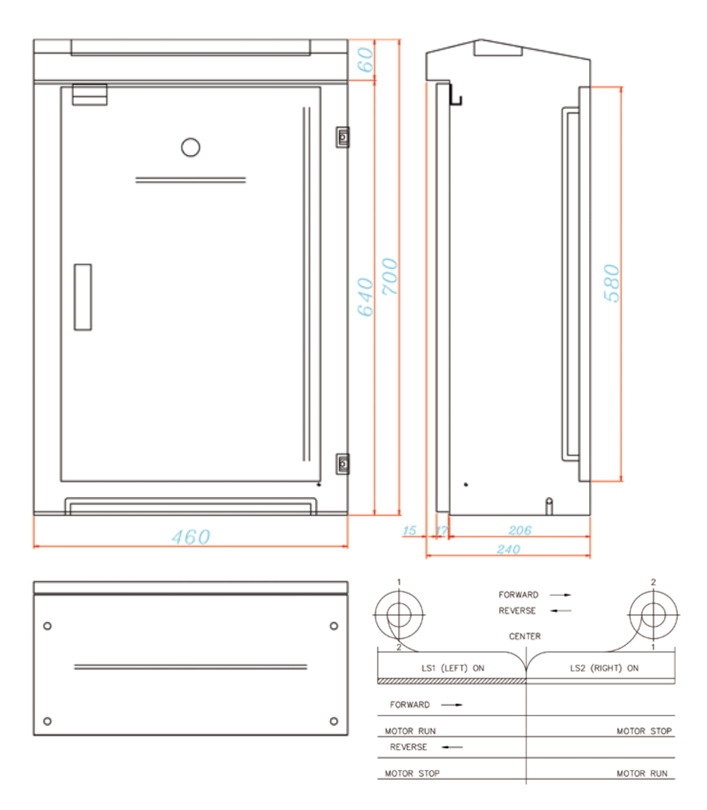

Drawings of Circuit Diagram of M/C type panel(Central power feed)

Drawings of Circuit Diagram (One-side and Central power feed)
