Air hose reels

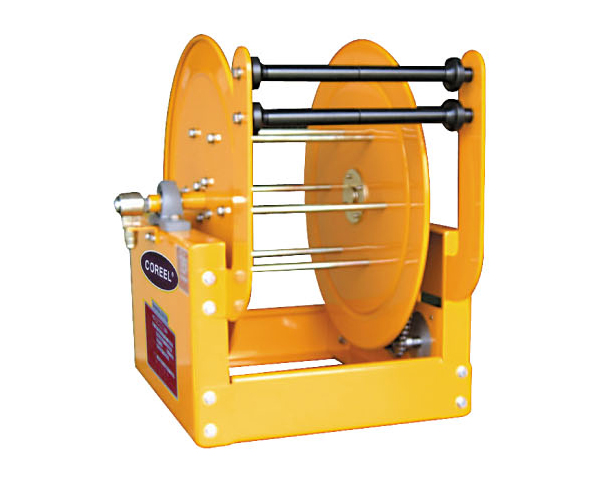

ASB Series
- Use : Large Vehicle A/S center, Various workshop, Construction site, Special truck
- Feature : Strong frame,Permanent sealing, Manual Rewinding
- Installation : Floor, Vehicle

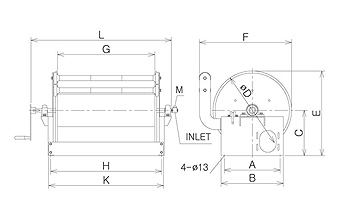

The drawings of ASB Series
The specification of ASB Series
| MODEL | Hose | W.P Max(kg/㎠) |
Weight (kg) |
|||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| External Size | I.D(mm) | L(M) | A | B | C | D | E | F | G | H | K | L | M | |||
| ASB-13100 | Synthetic Rubber | 13 | 100 | 15 | 430 | 480 | 325 | 550 | 600 | 660 | 500 | 605 | 635 | 840 | PT1/2" | 35 |
| ASB-16100 | Synthetic Rubber | 16 | 100 | 15 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 940 | PT1/2" | 41 |
| ASB-1950 | Synthetic Rubber | 19 | 50 | 15 | 430 | 480 | 325 | 550 | 600 | 660 | 500 | 605 | 635 | 840 | PT3/4" | 35 |
| ASB-2550 | Synthetic Rubber | 25 | 50 | 15 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 940 | PT1" | 41 |
