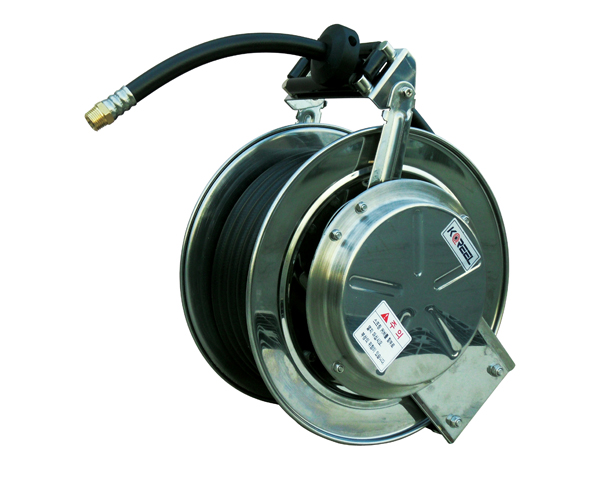

Water hose reels
TWA-H Series
- Use : Food plants, Kitchens, and other clean scene
- Features : External spring, Fixed bracket
- Installation : Wall(Within 3M height, If installed over 4M, it could not rewind.)
- Material : Rubber
It can maintain the job site clean by using stainless material. The life cycle of hose also can be extended 4~5 time
The drawings of TWA-H Series
The specification of TWA-H Series
| MODEL | Hose | W.P (BAR) |
weight (kg) |
Usage | Desc | ||
|---|---|---|---|---|---|---|---|
| Material | I.D-O.D(∅) | L(M) | |||||
| TWA-1308H | NBR,SBR | 13 | 8 | 20 | 12 | Cleaning Less 100℃ | For Hot Water Less 100℃ |
| TWA-1310H | NBR,SBR | 13 | 10 | 20 | 16 | ||
| TWA-1312H | NBR,SBR | 13 | 12 | 20 | 20 | ||
| TWA-1315H | NBR,SBR | 13 | 15 | 20 | 24 | ||
