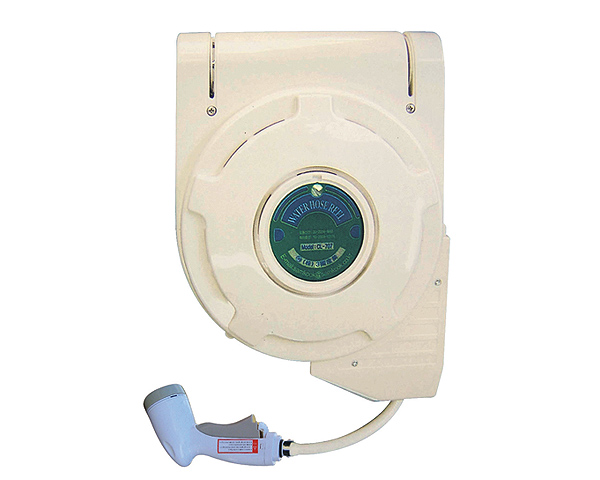

Water hose reels
CL Series
Real Vaule of innovation Convenient to cleaning balcony or watering flowers
CL Series Introduce
CL Series Features
- Current and jet of water can be adjustable freely.
- Easy cleaning, watering and keeping, convenient in use
- 3 way jet nozzle selectable- showering, general use, high pressure
- High pressure nozzle can clean the dusty outer walls and windows
- Hose can be rewind into the reel automatically by the spring power
- Spray gn is always in full of water and ready to be jetted at once
- Hose length: 6.5m
Notice
- By gently pulling the hose, the latch is realeased and the hose is automatically rewind after use.
- Change the nozzle by smoothly turning the jet outlet.
- Do not disassemble the reel
- Designed to stop at 180 degree when 'clicking' noise is heard.
Reel Operation
- Pull out the hose smoothly from the reel.
- Face the spray gun to the desired place and push for watering.
- 3-way jetting can be selected by turning the nozzle.
- Make sure to rewind to the rell after use.

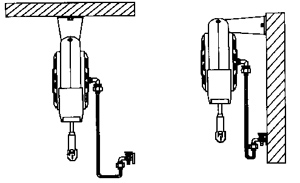

| Mounting examples | |
 |
|
| Ceiling | Wall |
CL Series
| MODEL | Hose | Pressure(kg/cm2) | Materal | Weight(kg) | packing Box Size |
|---|---|---|---|---|---|
| CL707 | I.D(Ø) , O.D(Ø):12 , L(m):6.5 | 7 | PVC | 5.3 | 39x29x19 |
CL Series Product Basic Configuration - 1SET

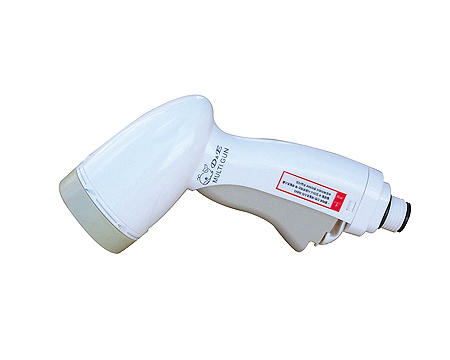

Jet nozzle gun

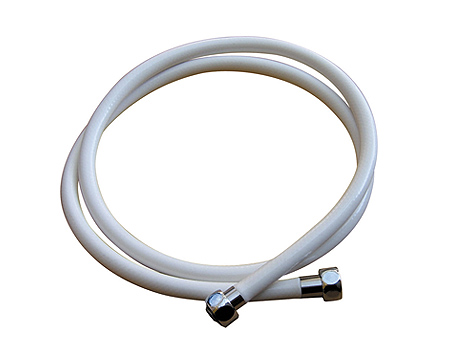

Inlet hose 1.5m(1.8m option)

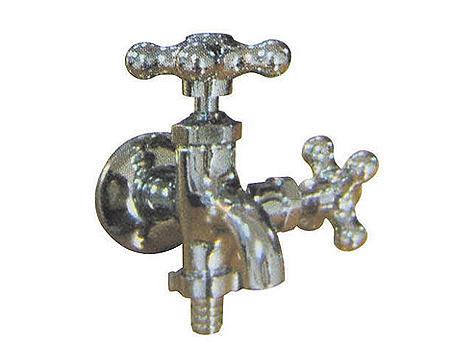

Improved tap(option)
