Water hose reels

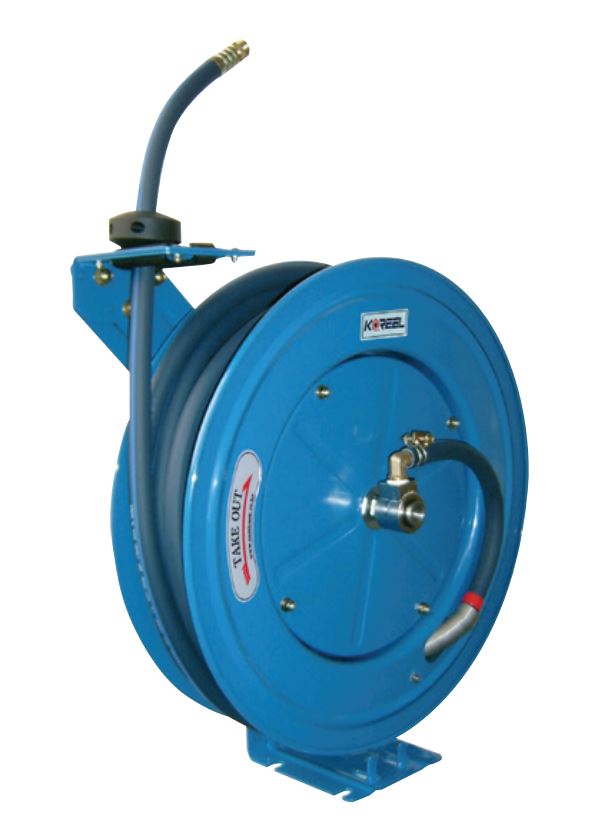

SJ Series
(Water Reel)
- Use : Construction site, industrial site
- Feature : compact size, automatic winding, single steel frame
- Installation : Wall, Ceiling

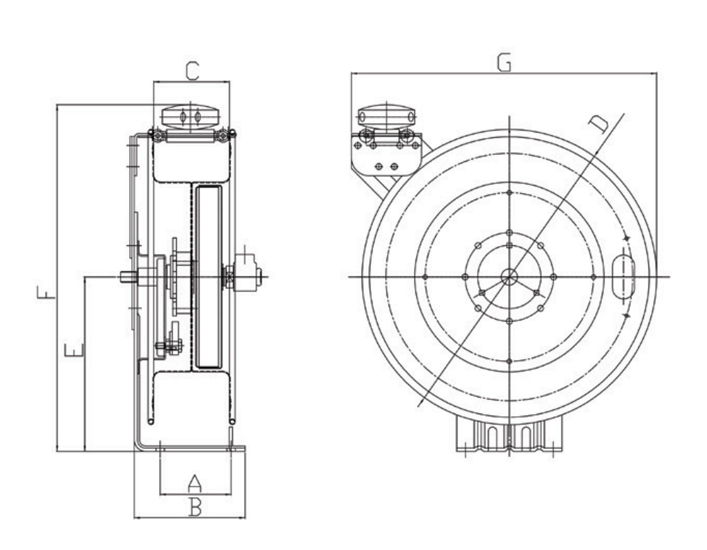

The drawings of SJ Series
The specification of SJ Series
| MODEL | Hose | W.P Max(kg/㎠) |
Dimensions(mm) | Weight (kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | A | B | C | D | E | F | G | |||
| SRWA-910 | Synthetic Rubber | 9.5 | 10 | 20 | 101 | 158 | - | ∅420 | 248 | 493 | 435 | 17 |
| SRWA-915 | Synthetic Rubber | 9.5 | 15 | 20 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 18 |
| SRWA-920 | Synthetic Rubber | 9.5 | 20 | 20 | 101 | 158 | 110 | ∅500 | 288 | 578 | 517 | 19 |
| SRWA-1310 | Synthetic Rubber | 13 | 10 | 20 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 18 |
| SRWA-1315 | Synthetic Rubber | 13 | 15 | 20 | 101 | 158 | 105 | ∅420 | 248 | 493 | 435 | 19 |
| SRWA-1320 | Synthetic Rubber | 13 | 20 | 20 | 101 | 158 | 110 | ∅500 | 288 | 578 | 517 | 24 |
