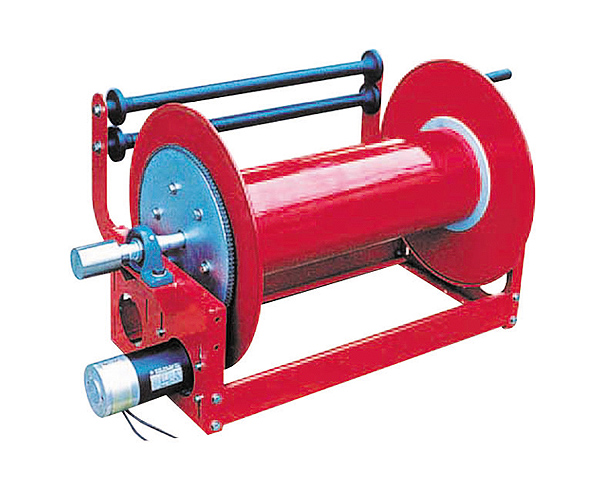

Water hose reels
WSBM Series
- Use : Special Truck, Construction site, Various industrial workshop
- Feature : Strong frame, Long last sealing, Motor rewind
- Installation : Vehicles and floors

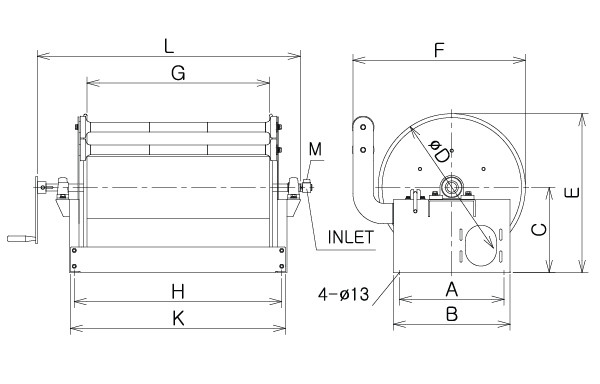

The drawings of WSBM Series
The specification of WSBM Series
| MODEL | Hose | W.P | Dimensions(mm) | Weight (kg) |
||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | E | F | G | H | K | L | M | ||
| WSBM-13200 | Rubber Hose | 13 | 200 | 20 | 430 | 480 | 350 | 600 | 650 | 710 | 650 | 770 | 800 | 960 | PT1/2" | 46 |
| WSBM-16100 | Rubber Hose | 16 | 100 | 20 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 910 | PT1/2" | 46 |
| WSBM-1950 | Rubber Hose | 19 | 50 | 20 | 430 | 480 | 325 | 550 | 600 | 660 | 600 | 720 | 750 | 910 | PT3/4" | 40 |
| WSBM-19100 | Rubber Hose | 19 | 100 | 20 | 430 | 480 | 350 | 600 | 650 | 710 | 650 | 770 | 800 | 960 | PT3/4" | 46 |
| WSBM-2550 | Rubber Hose | 25 | 50 | 20 | 430 | 480 | 350 | 600 | 650 | 710 | 600 | 720 | 750 | 910 | PT1" | 46 |
| WSBM-25100 | Rubber Hose | 25 | 100 | 20 | 430 | 480 | 380 | 650 | 705 | 760 | 750 | 870 | 900 | 1060 | PT1" | 53 |
