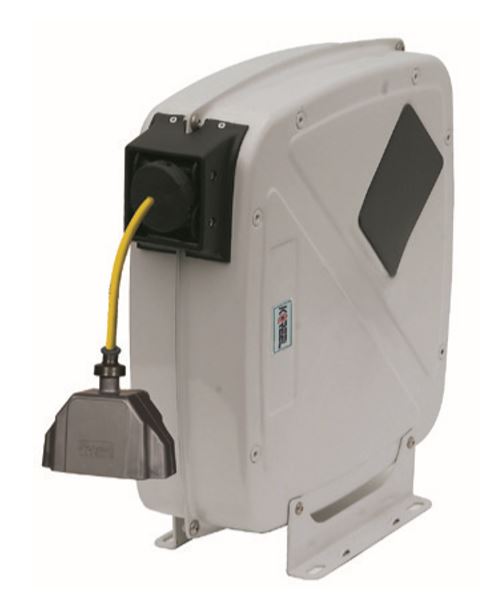

Electric cord reels
EER Series
- Use : All sorts of electrical work places(Service center, Factories, Laboratory)
- Features : Steel package type, Hanger bracket included
- Installation : Wall, Celling (Within 3M height, If installed over 4M, it could not rewind.)
- Material : Steel case
enables to promote safety and convenience when being in works using electricity.
enables to make a immediate use for the following works through automated rewinding capability after use.
enables to keep operation cables long lived and has various types of product depending on types of power and how to install according to length of cable.
EER Series
EER Series
| Model | Cable | Maximum Capacity Max(V×A) |
Weight (kg) |
Remark | |
|---|---|---|---|---|---|
| Cable Specification | L(M) | ||||
| EER-110 | VCTF 1.5SQ×3C, Outlet | 10 | 220V×10A | 12 | For Indoor |
| EER-115 | VCTF 1.5SQ×3C, Outlet | 15 | 220V×10A | 12 | For Indoor |
| EER-120 | VCTF 1.5SQ×3C, Outlet | 20 | 220V×10A | 14 | For Indoor |
| EER-210 | VCTF 2.5SQ×3C, Outlet | 10 | 220V×15A | 12 | For Indoor |
| EER-215 | VCTF 2.5SQ×3C, Outlet | 15 | 220V×15A | 14 | For Indoor |
