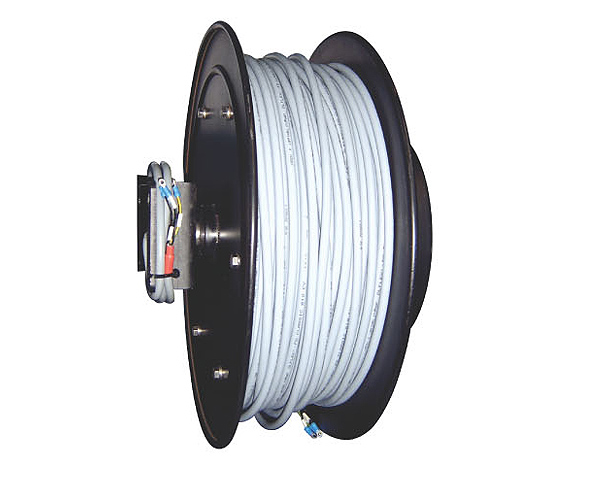

Reels for Special Vehicles - Control & Power supplying
ECC Series
- Any Specification can be acceptable as buyer's request.
Usse on telescopic boom of construction vehicles to controle the work bench and supply the power for electriclly powered equipment.
The cable for the reel is used special reeling cable and it is used for the function of communication and signal with suitable slipring.

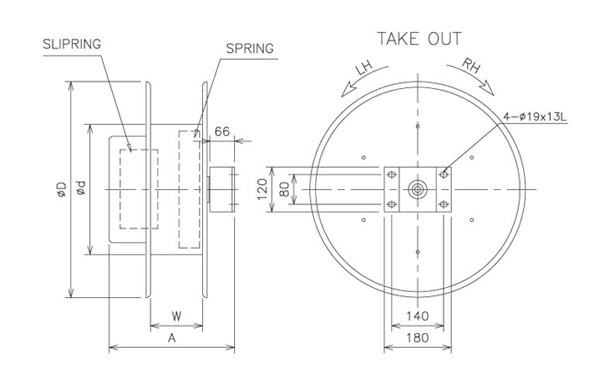

Drawings of ECC Series
ECC Series Specification
| MODEL | Hose Specification | L(M) | A | D | d | W |
|---|---|---|---|---|---|---|
| ECC-0725-3C | LAPP810CY 0.75SQ ×3 C | 25 | 315 | 400 | 250 | 115 |
| ECC-0735-3C | LAPP810CY 0.75SQ ×3 C | 35 | 315 | 400 | 250 | 115 |
| ECC-130-3C | LAPP810CY 1.5SQ ×3 C | 30 | 315 | 400 | 250 | 115 |
| ECC-150-3C | LAPP810CY 1.5SQ ×3 C | 50 | 340 | 500 | 350 | 140 |
| ECC-155-12 | LAPP855CY 1.0SQ ×3 C | 55 | 340 | 600 | 350 | 140 |
