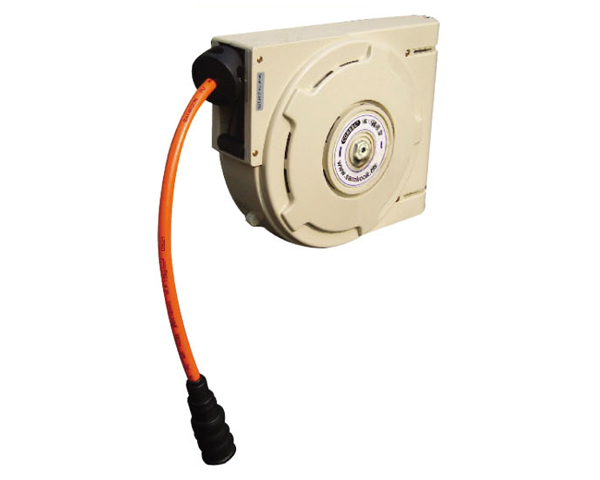

Air hose reels
AF Series
enables you to use air hose conveniently in the field using the compressed air.
is designed to prevent leakage and change of rolling capability through using flexible air hoses and special springs.
is designed to be a simple structure that enables user to install and use easily.
enables to enhance organizational effectiveness and working efficiency in the work place.

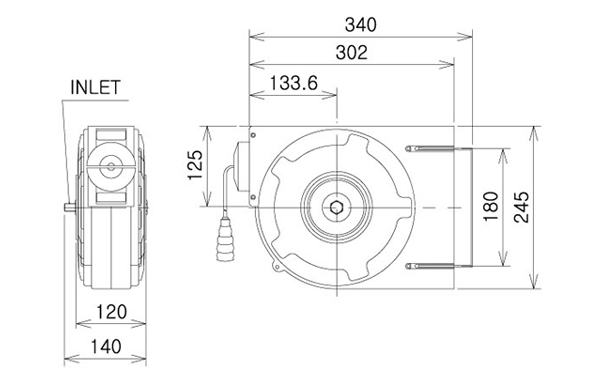

The drawings of AF Series
The specification of AF Series
| MODEL | Hose | W.P | Weight (kg) |
||
|---|---|---|---|---|---|
| material | I.D-O.D(∅) | L(M) | Max(kg/㎠) | ||
| AF-610 | pu.pp | 6 | 8 | 10 | 4.5 |
| AF-808 | pu.pp | 8 | 7 | 10 | 5 |
