Air hose reels
Multi Reel box Series
- Use : Vehicle A/S center, Various workshop
- Feature : Package steel case, Polyurethane Hose
- Installation : Wall, Ceiling(Within 4M height, If installed over 4M, it could not rewind.)
- Material : Steel case
has various auto reels within integrated case in the work place using power cord and compressed air.
makes workplace snug in appearance and be in order as a professional workplace.
Each auto reel made to use easily as an automatic rolling type has the braided polyurethane hoses and long life springs.
rofessional service centers give top priority to using this product.

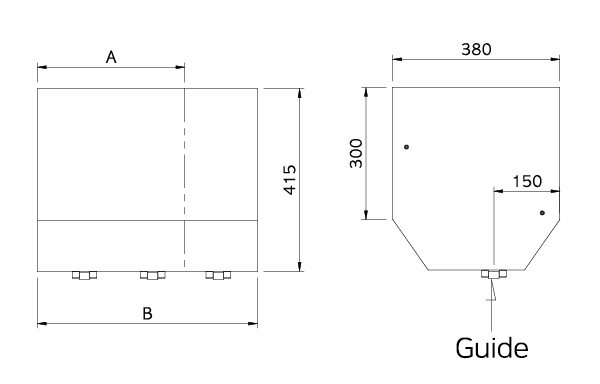

The drawings of Multi Reel box Series

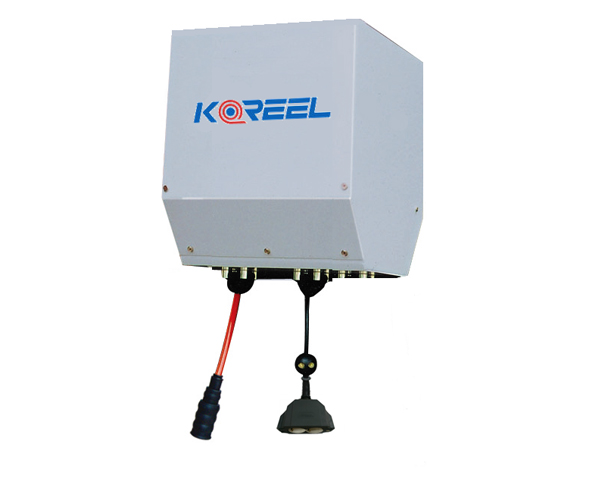

2 Multi Reel box

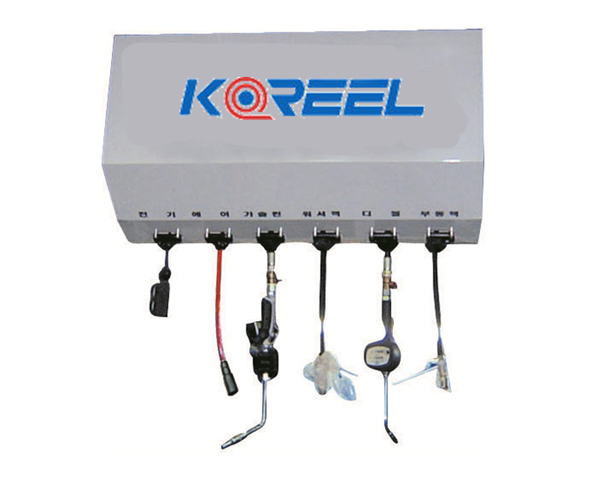

6 Multi Reel box
The specification of Multi Reel box Series
| MODEL | Air hose reel | Cord reel | External Size(mm) | Component | Weight(kg) (kg) |
||||
|---|---|---|---|---|---|---|---|---|---|
| Material | I.D(mm) | L(M) | Cord reel | L(M) | A | B | |||
| CR-815-2 | PU | 8 | 15 | VCTF 1.5SQX3C | 15 | 335 | - | Air x 1, Electric 1 | 21 |
| CR-815-2S | PU | 8 | 15 | VCTF 1.5SQX3C | 15 | 335 | - | Air x 2 | 20 |
| CR-815-3 | PU | 8 | 15 | VCTF 1.5SQX3C | 15 | - | 500 | Air x 2, Electric 1 | 30.3 |
| CR-815-6 | PU | 8 | 15 | VCTF 1.5SQX3C | 15 | - | 980 | Electric 1, Air 1, Gasoline 1, washer fluid 1, Diesel 1, Antifreeze 1 |
55 |
