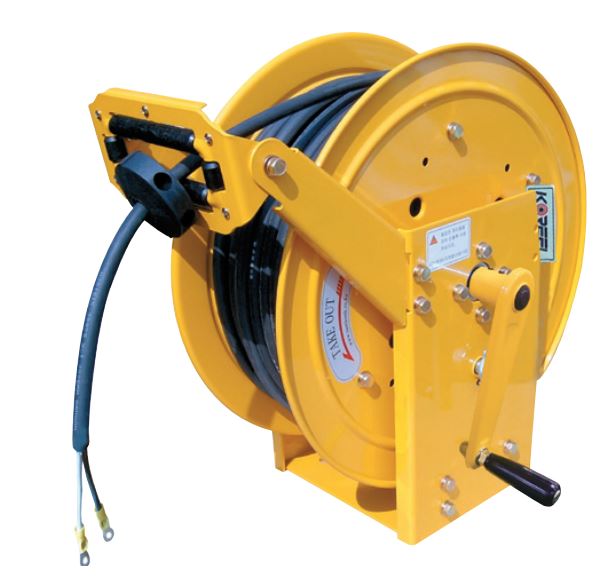

Electric cord reels
ALM-SK Series
- Use : Operation cable for industrial site, For power supply
- Features : Solid frame, High durable slip ring, Manual rewind
- Installation : Wall, Floor(Within 4M height, If installed over 4M, it could not rewind.)
Cord Reel increases greatly work efficiency and safety when dealing with electrical equipments.
After work, it is easy to rewind the cable with a handle and make a use of it instantly to the following work.
Additionally, the cord is considerably durable. There are various types based on the cable length.

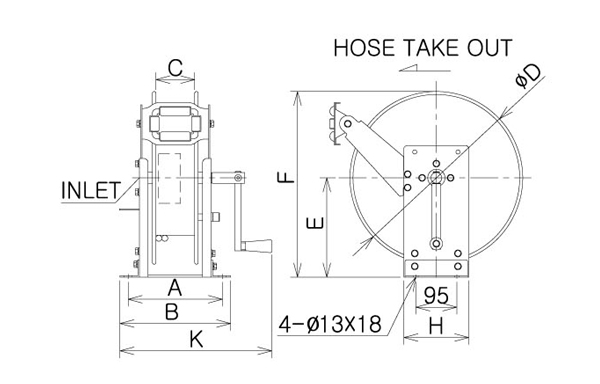

The drawings of ALM-SK Series
The specification of ALM-SK Series
| MODEL | Cable | Maximum Capacity Max(VxA) |
External Size(mm) | Weight (Kg) |
Remark | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cable Specifications | L(M) | A | B | C | D | E | F | H | K | ||||
| ALM-420-3 | VCT 4.0SQ×3C | 20 | 380V×15A | 238 | 278 | 110 | 400 | 230 | 430 | 150 | 380 | 16.6 | For Indoor |
| ALM-430-3 | VCT 4.0SQ×3C | 30 | 380V×15A | 238 | 278 | 110 | 450 | 260 | 485 | 150 | 380 | 21.5 | For Indoor |
| ALM-440-3 | VCT 4.0SQ×3C | 40 | 380V×15A | 238 | 278 | 110 | 450 | 260 | 485 | 200 | 380 | 24.5 | For Indoor |
| ALM-450-3 | VCT 4.0SQ×3C | 50 | 380V×15A | 278 | 318 | 150 | 450 | 260 | 485 | 200 | 420 | 29.5 | For Indoor |
| ALM-620-3 | VCT 6.0SQ×3C | 20 | 380V×30A | 238 | 278 | 110 | 450 | 260 | 485 | 150 | 380 | 21 | For Indoor |
| ALM-630-3 | VCT 6.0SQ×3C | 30 | 380V×30A | 278 | 318 | 150 | 500 | 290 | 540 | 200 | 420 | 23 | For Indoor |
| ALM-640-3 | VCT 6.0SQ×3C | 40 | 380V×30A | 278 | 318 | 150 | 450 | 260 | 485 | 200 | 420 | 27.5 | For Indoor |
| ALM-650-3 | VCT 6.0SQ×3C | 50 | 380V×30A | 278 | 318 | 150 | 500 | 290 | 540 | 200 | 420 | 32.4 | For Indoor |
| ALM-1020-3 | VCT 10SQ×3C | 20 | 380V×40A | 278 | 318 | 150 | 450 | 260 | 485 | 150 | 420 | 27 | For Indoor |
| ALM-1030-3 | VCT 10SQ×3C | 30 | 380V×40A | 278 | 318 | 150 | 500 | 290 | 540 | 200 | 420 | 32 | For Indoor |
| ALM-1040-3 | VCT 10SQ×3C | 40 | 380V×40A | 338 | 378 | 210 | 450 | 260 | 485 | 200 | 480 | 36 | For Indoor |
| ALM-1050-3 | VCT 10SQ×3C | 50 | 380V×40A | 338 | 378 | 210 | 450 | 260 | 485 | 200 | 480 | 40 | For Indoor |
