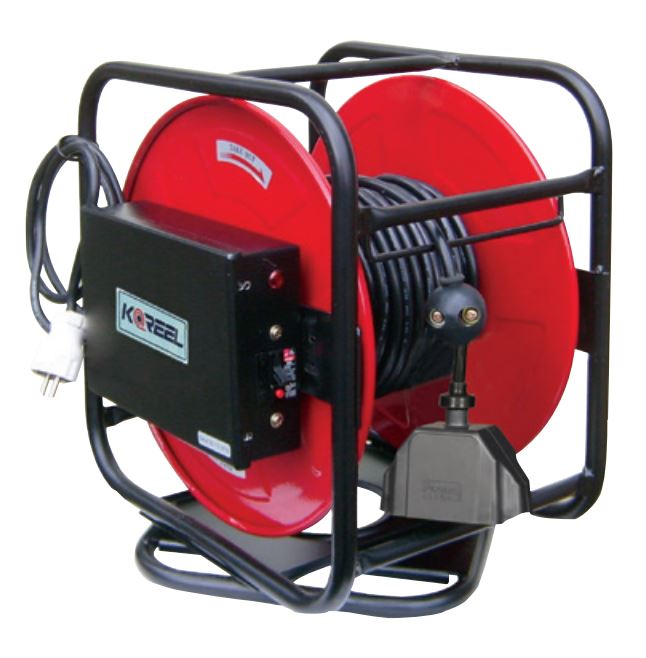

Electric cord reels
PM-R Series
(Swivel TYPE)
- Use : Interior work sites(using electric machine), Industrial site, Laboratory
- Features :
- Steel products with solid structure.
Corrosion-resistance by powder-blast painting.
Easy movement and storage by using a manual handle.
Equipped with a brake.
Able to be equipped various cords in thickness and length.
Cord Reel increases greatly work efficiency and safety when dealing with electrical equipments.
After work, it is easy to rewind the cable with a handle and make a use of it instantly to the following work.
Additionally, the cord is considerably durable. There are various types based on the cable length.

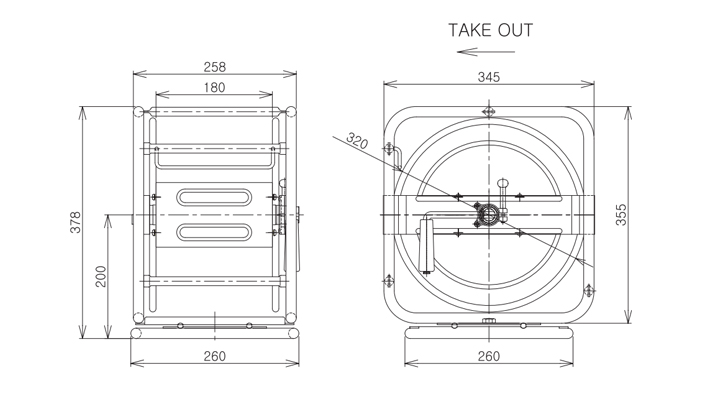

The drawings of PM-R Series
The specification of PM-R Series
| MODEL | Cable | Maximum Capacity(A) | Weight(kg) | Remark | |
|---|---|---|---|---|---|
| Cable Specifications | L(M) | ||||
| EPMR-230 | VCTF-1.5SQ×3C, Outlet | 30 | 220V×10A | 7.5 | For Indoor |
| EPMR-240 | VCTF-1.5SQ×3C, Outlet | 40 | 220V×10A | 8 | For Indoor |
| EPMR-250 | VCTF-1.5SQ×3C, Outlet | 50 | 220V×10A | 8.5 | For Indoor |
