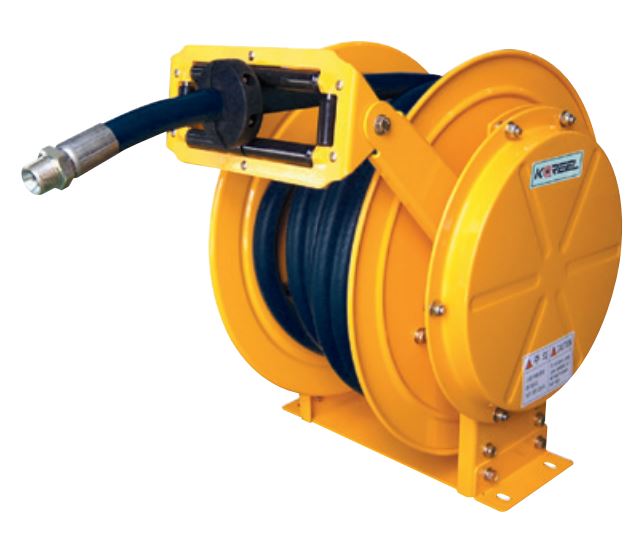

Oil pressure hose reels

RHA Series



  • Use : Car service center, Industrial site, Steel mills, Oil depots of power plants
  • Features : Solid frame, High durability seals, Powerful spring
  • Installation : Wall, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)

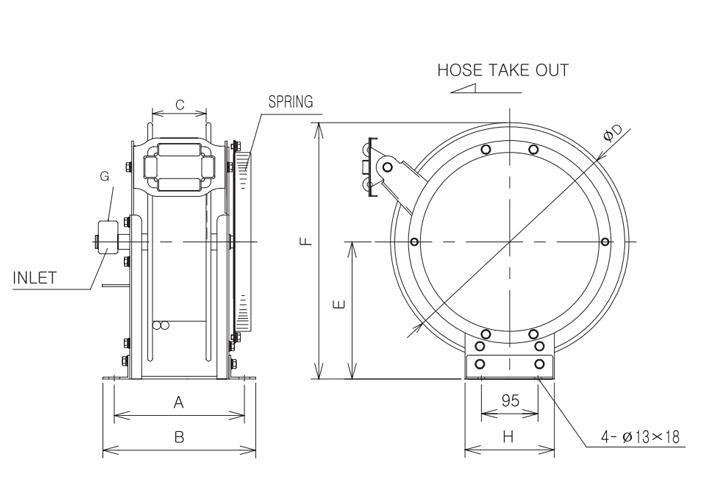

The drawings of RHA Series
The specification RHA Series
MODEL Hose W.P External Size(mm) Weight
(kg)
Size I.D(mm) L(M) Max(kg/㎠) A B C D E F G H
RHA-610 1/4″×1W 6.4 10 190 216 256 90 400 230 430 PT1/4” 150 16.5
RHA-615 1/4″×1W 6.4 15 190 216 256 90 400 230 430 PT1/4” 150 19
RHA-620 1/4″×1W 6.4 20 190 236 276 110 400 230 430 PT1/4” 150 21.3
RHA-625 1/4″×1W 6.4 25 190 236 276 110 450 260 485 PT1/4” 150 25.8
RHA-630 1/4″×1W 6.4 30 190 236 276 110 450 260 485 PT1/4” 150 28
RHA-910 3/8″×1W 9.5 10 150 216 256 90 400 230 430 PT3/8” 150 22
RHA-915 3/8″×1W 9.5 15 150 236 276 110 400 230 430 PT3/8” 150 24
RHA-920 3/8″×1W 9.5 20 150 236 276 110 450 260 485 PT3/8” 150 27
RHA-925 3/8″×1W 9.5 25 150 278 318 150 500 290 540 PT3/8” 200 31.5
RHA-930 3/8″×1W 9.5 30 150 278 318 150 500 290 540 PT3/8” 200 35
RHA-1310 1/2″×1W 12.7 10 140 278 318 150 400 230 430 PT1/2” 150 24
RHA-1315 1/2″×1W 12.7 15 140 278 318 150 400 230 430 PT1/2” 150 26
RHA-1320 1/2″×1W 12.7 20 140 278 318 150 450 260 485 PT1/2” 150 32
RHA-1325 1/2″×1W 12.7 25 140 278 318 150 500 290 540 PT1/2” 200 36
RHA-1330 1/2″×1W 12.7 30 140 278 318 150 500 290 540 PT1/2” 200 38
RHA-1910 3/4″×1W 19 10 80 338 378 210 450 290 515 PT3/4” 200 34
RHA-1915 3/4″×1W 19 15 80 338 378 210 450 290 515 PT3/4” 200 37
RHA-1920 3/4″×1W 19 20 80 338 378 210 500 290 540 PT3/4” 200 40
RHA-1925 3/4″×1W 19 25 80 338 378 210 550 315 590 PT3/4” 200 45
RHA-1930 3/4″×1W 19 30 80 338 378 210 550 315 590 PT3/4” 200 48
RHA-2510 1″×1W 25 10 70 338 378 210 450 290 515 PT1″ 200 36
RHA-2515 1″×1W 25 15 70 408 448 280 500 315 565 PT1″ 200 39
RHA-2520 1″×1W 25 20 70 408 448 280 500 315 565 PT1″ 200 44
RHA-2525 1″×1W 25 20 70 408 448 280 550 345 620 PT1″ 200 44
