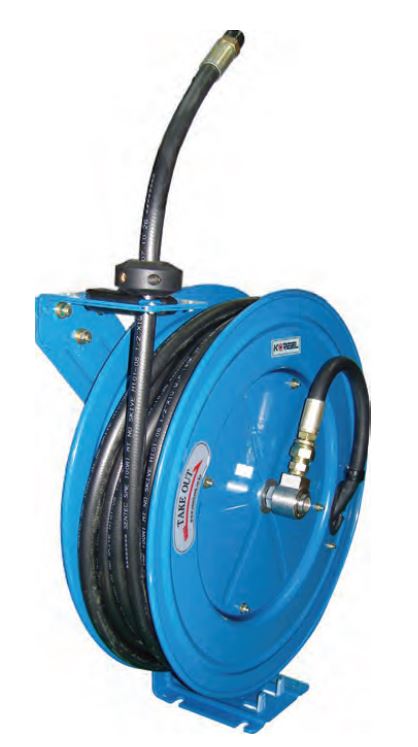

Oil pressure hose reels
SJ Series
- Use : Construction site, Industrial site, Laboratory
- Features : Solid frame, High durability seals, Powerful spring, Auto rewind
- Installation : Wall, Ceiling
SJ Series
SJ Series

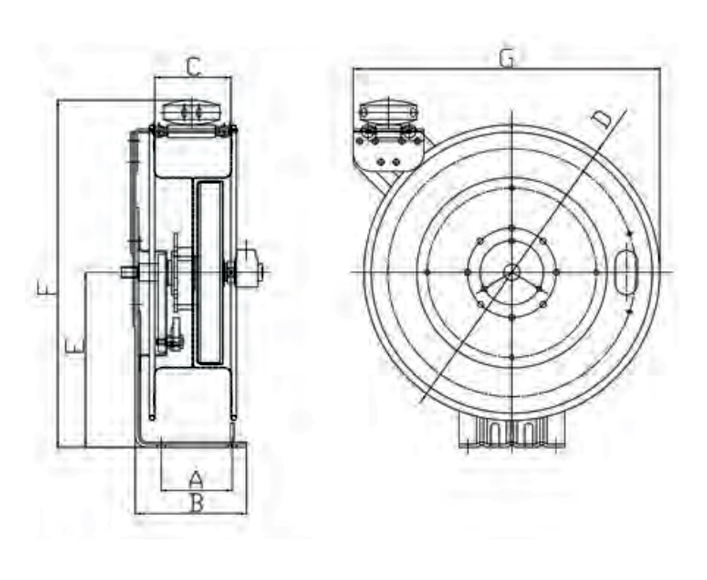

| MODEL | Hose | W.P | External Size(mm) | Weight (kg) |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | I.D(mm) | L(M) | Max(kg/㎠) | A | B | C | D | E | F | G | ||
| SRHA-610G | 1/4″×2W | 6.4 | 10 | 350 | 101 | 158 | 105 | Ø420 | 248 | 493 | 435 | 19 |
| SRHA-615G | 1/4″×2W | 6.4 | 15 | 350 | 101 | 158 | 105 | Ø420 | 248 | 493 | 435 | 21 |
| SRHA-620G | 1/4″×2W | 6.4 | 20 | 350 | 101 | 158 | 105 | Ø500 | 288 | 578 | 517 | 23 |
| SRHA-910 | 3/8″×1W | 9.5 | 10 | 158 | 101 | 158 | 105 | Ø420 | 248 | 493 | 435 | 20 |
| SRHA-915 | 3/8″×1W | 9.5 | 15 | 158 | 101 | 158 | 105 | Ø420 | 248 | 493 | 435 | 20 |
| SRHA-920 | 3/8″×1W | 9.5 | 20 | 158 | 101 | 158 | 110 | Ø500 | 288 | 578 | 517 | 25 |
