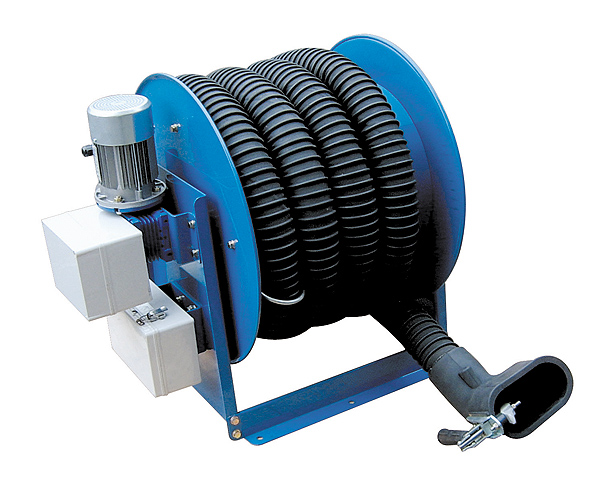

Exhaust gas reels
WGM Series
- Use: Small-sized car service center, Laboratory, School labs
- Feature: Spring rewind, Blower-attached type, Flexible high-temperature hose
- Installation: Wall, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)
It is a necessary item to keep a work place of a car service center clean and comfortable.
It functions to inhale hot exhaust gas and then fume out through a connected pipe.
As an electric motor driven type, adopting an integrated control circuit with powerful motor drive, It is easy to maintain and repair.
In addition, a multipurpose muffler nozzle is attached.

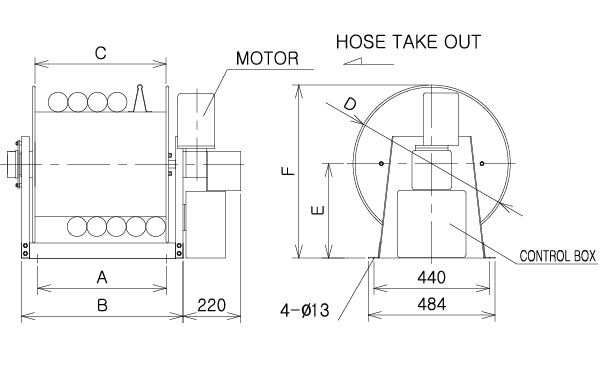

The drawings of WGM Series
The specification of WGM Series
| P.Number | MODEL | Hose | External Size | Weight (kg) |
Voltage | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D(mm) | Maximum Temperature | L(m) | A | B | C | D | E | F | ||||
| 9000005 | WGM-7507 | 75 | 150˚ | 7.5 | 590 | 720 | 600 | 600 | 360 | 660 | 52 | Three Phases 220V/380V |
| 9000006 | WGM-7510 | 75 | 150˚ | 10 | 740 | 870 | 750 | 600 | 360 | 660 | 58 | Three Phases 220V/380V |
| 9000007 | WGM-1007 | 100 | 150˚ | 7.5 | 640 | 770 | 650 | 650 | 400 | 725 | 73.5 | Three Phases 220V/380V |
| 9000008 | WGM-1010 | 100 | 150˚ | 10 | 790 | 920 | 800 | 650 | 400 | 725 | 81 | Three Phases 220V/380V |
