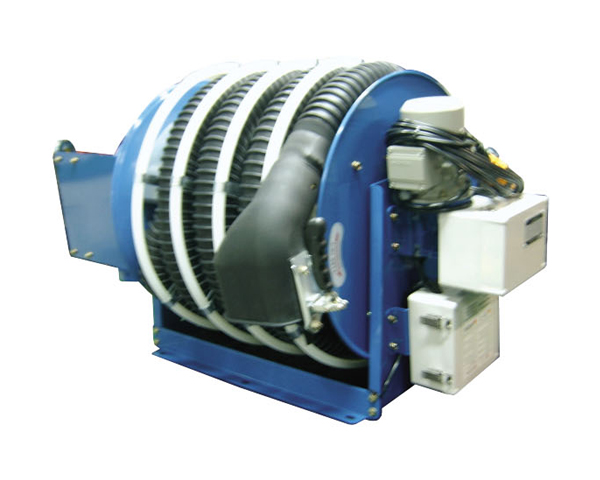

Exhaust gas reels
WGM-B Series
- Use: Car service center, Automobile Laboratory, School labs
- Feature: Automatic motor driven type, Blower, Flexible high-temperature hose
- Installation: Wall, Ceiling (Withing 4 m height,If installed over 4M, it could not rewind.)
It is a necessary item to keep a work place of a car service center clean and comfortable.
It functions to inhale hot exhaust gas and then fume out through a connected pipe.
As an electric motor driven type, adopting an integrated control circuit with powerful motor drive, It is easy to maintain and repair.
In addition, a multipurpose muffler nozzle is attached.

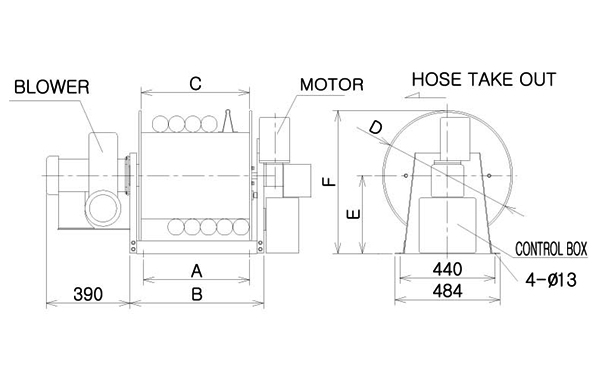

The drawings of WGM-B Series
The specification of WGM-B Series
| MODEL | Hose | External Size | Weight (kg) |
Voltage | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| I.D(mm) | Maximum Temperature | L(m) | A | B | C | D | E | F | |||
| WGM-7507B | 75 | 150˚ | 7.5 | 590 | 720 | 600 | 600 | 360 | 660 | 55 | Three Phases 220V/380V |
| WGM-7510B | 75 | 150˚ | 10 | 740 | 870 | 750 | 600 | 360 | 660 | 61 | Three Phases 220V/380V |
| WGM-1007B | 100 | 150˚ | 7.5 | 640 | 770 | 650 | 650 | 400 | 725 | 76.5 | Three Phases 220V/380V |
| WGM-1010B | 100 | 150˚ | 10 | 790 | 920 | 800 | 650 | 400 | 725 | 84 | Three Phases 220V/380V |
