Brake

Disc

Disc



  • *You need to order Coulpers separately.
Disc

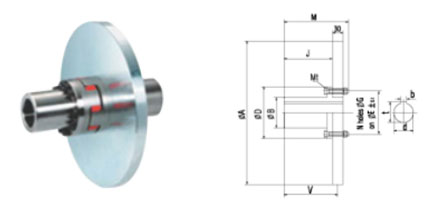

Disc Type
  315 355 400 450 500 560 630 710 800
Solid Discs
Total inertia ㎏.㎡ 0.234 0.378 0.581 0.933 1.466 2.198 3.632 5.896 9.563
Disc inertia ㎏.㎡ 0.227 0.365 0.56 0.904 1.374 2.107 3.521 5.699 9.218
Total weight ㎏ 21 27 33 43 56 67 84 108 141
Disc weight ㎏ 16 21 26 33 40 50 66 84 107
Max.Rotating speed rpm 3600 3200 2900 2500 2300 2000 1800 1600 1400
ØA ㎜ 315 355 400 450 500 560 630 710 800
ØB ㎜ 80 95 105 110 150 150 150 180 210
ØD ㎜ 125 145 165 175 220 220 235 265 300
ØE ㎜ 105 125 140 146 190 190 205 230 260
ØF ㎜ 85 105 115 120 160 160 170 195 220
ØC ㎜ 18-50 18-60 18-70 18-70 30-100 30-100 30-100 40-120 40-130
J ㎜ 87 87 87 120 120 120 120 120 120
K ㎜ 28 28 28 30 38 38 38 40 40
L ㎜ 107 107 107 140 140 140 140 140 140
M ㎜ 127 129 131 166 168 168 170 172 174
N ㎜ 9 9 9 12 12 12 12 12 12
ØG ㎜ 10.5 13 15 17 19 19 21 23 25
P ㎜ M10 M12 M14 M16 M18 M18 M20 M22 M24
Torque    Num 49 86 135 210 290 290 410 550 710
V ㎜ 102 102 102 135 135 135 135 135 135
