Drum

Brake

D	Yshafthole		Dimensions(mm)		B	D1	D2	d1	d2	δ	Inertia	Weight

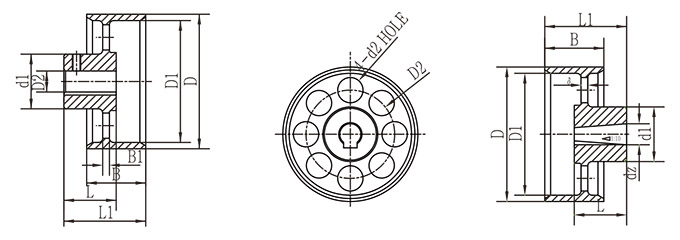

DrumDimensionsandTechnicalData
D	d	L	dz	L	B	D1	D2	d1	d2	δ	kg.m2	kg
160	25,28	62	25,28	44	70	145	105	65	30	8	0.03	5
160	30,32,35	82	30,32,35	60	70	145	105	65	30	8	0.03	5
200	25,28	62	30,32,35,38	60	85	180	140	100	30	8	0.2	10
	30,32,35,38	82	30,32,35,38	60
	40,42,45,48,50,55	112	40,42,45,48,50,55	84
250	30,32,35,38	82	30,32,35,38	60	105	220	168	115	40	8	0.28	18
	40,42,45,48,50,55	112	40,42,45,48,50,55	84
	60	142	60	107
315	40,42,45,48,50,55	112	60,65,70,75	107	135	290	200	120	55	8	0.6	24.5
315	60,65	142	60,65,70,75	107	135	290	200	120	55	8	0.6	24.5
400	60,65,70,75	142	60,65,70,75	107	170	370	275	175	70	12	1.5	60.7
	80,85	172	80,85,90,95	132
	80,85	172	100,110	167
500	80,85,90,95	172	75	107	210	465	340	210	90	14	3.8	100.6
	100,110	212	80,85,90,95	132
			100,110,120	167
			130	202
630	90,95	172	90,95	132	256	595	390	210	120	16	7.9	132.1
	100,110	212	100,110	167
	100,110	212	130	202
800	130,140,150	252	130,140,150	202	760	760	495	230	140	18	22.1	230.9
