Cable Reel For Stage System
For Stage equipments
This type of the reels is classified to one for upper stage and one for lower stage.
- Reels for upper stage : to supply power and deliver signal for driving and controling Wegen, rear sliding stage, sound reflecting plate
- Reels for lower stage : to supply power and deliver signal for control main stages’ altitude
- Common features : Motor-driven, spring type, high durability, easy maintenence, etc.
- Mark : Applicable for the stage with advanced technology by various designings.

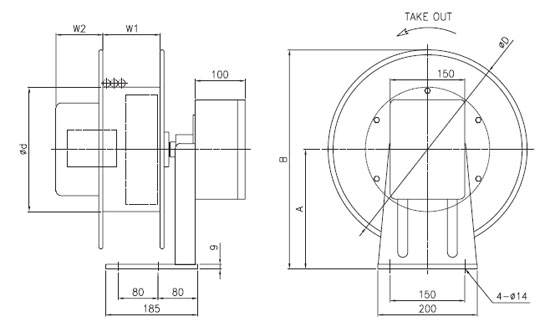

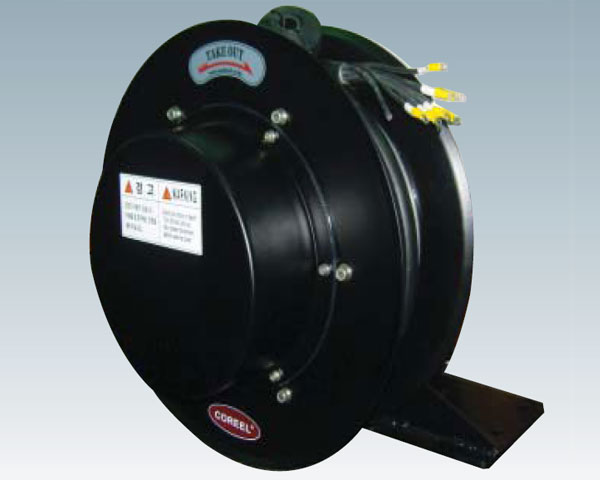

STC Type Cable Reel
- Use : Power supplying to stage gears, delivering signals
- Features : internal spring, easy maintenence
Zoom-in
| STC TYPE | ||||||||
| Model | ФD | Фd | W1 | W2 | A | B | Application scope | Note |
|---|---|---|---|---|---|---|---|---|
| STC 1 | 400 | 250 | 115 | 94 | 240 | 440 | Under 1SQ * 7C * 20M | AP. DMX |
| STC 2 | 450 | 250 | 115 | 124 | 265 | 490 | Under 4SQ * 8C * 10M | CT. POWER |
* Order-made available.

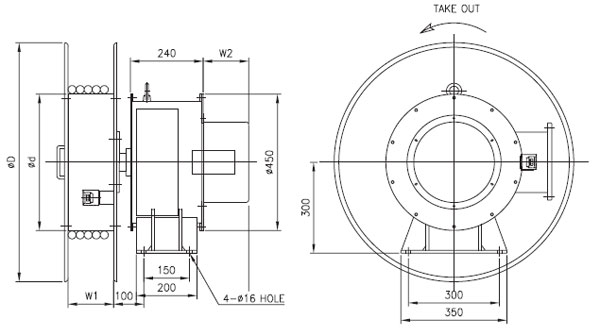

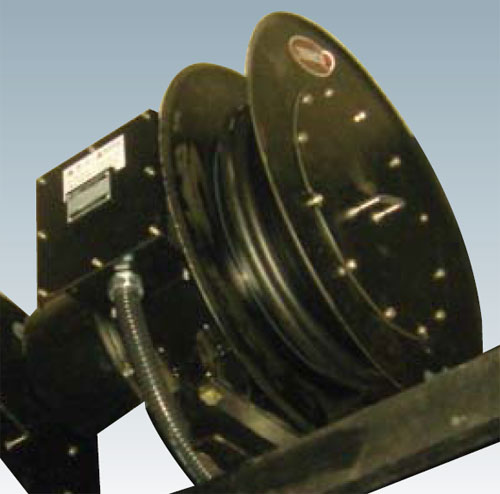

STS Type Cable Reel
- Use : Miltipoalr, power supplement for long distance, delivering control signal
- Features : Internal spring, composite signal deliverable.
| STS TYPE | ||||||
|---|---|---|---|---|---|---|
| Model | ФD | Фd | W1 | W2 | Application scope | Note |
| STS 1 | 600 | 450 | 240 | 220 | Under 1SQ * 50C * 25M | WAG. SIGNAL |
| STS 2 | 700 | 450 | 240 | 220 | Under 2.5SQ * 15C * 25M | WAG. POWER |
* Order-made available.

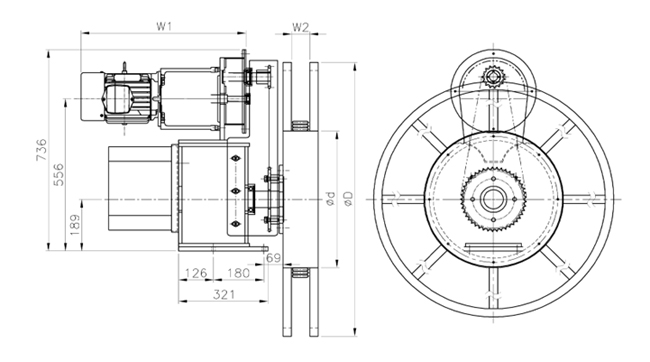

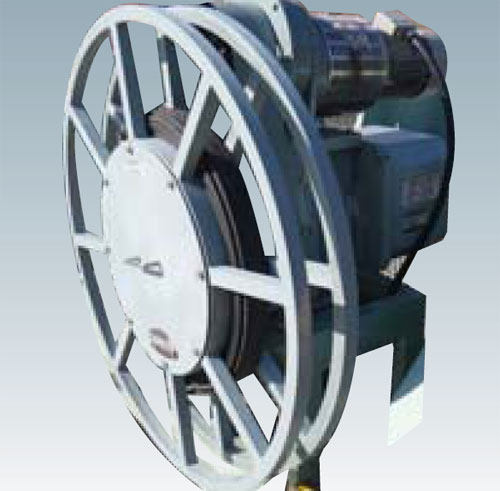

STC-M Type Cable Reel
- Use : High, capacitancy, Miltipoalr, power supplement for long distance
- Features : Motor-driven, Various designs for different installment conditions
| STC-M TYPE | ||||||
|---|---|---|---|---|---|---|
| Model | ФD | Фd | W1 | W2 | Application scope | Note |
| STC-M1 | 1000 | 500 | 590 | 65 | Under 16SQ * 8C * 40M | TOWER PO. |
* Order-made available.
