For Audio and Video

For Audio and Video

Installed at a upper performance arena to deliver the signal to mics and speakers

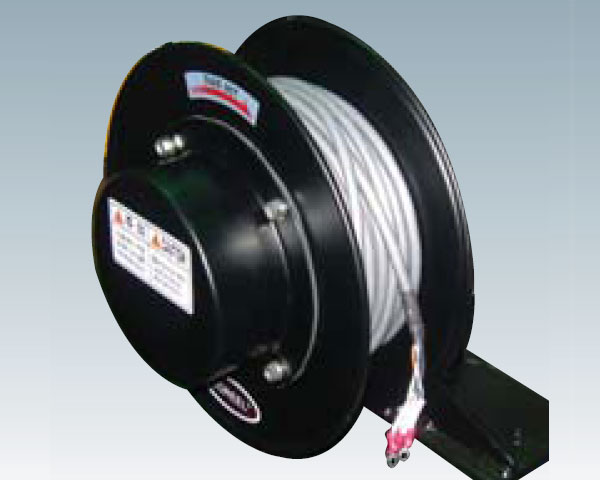

SDC Type Cable Reel
  • Use : Signal delivery of sounds, mics on ceiling, cast-in-place beam projectors, etc.
  • Features : Molded-in slip ring is adopted.
SDC TYPE

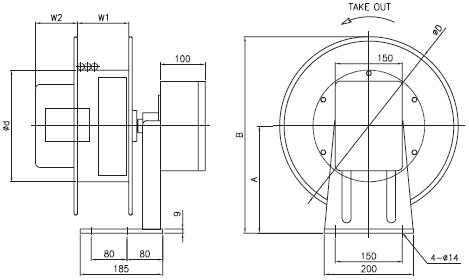

Model ФD Фd A B Application scope Note
SDC1 250 160 70 20 Under 1SQ * 5C * 6M MIC. DMX
SDC 2 250 160 70 80 Under 1SQ * 5C * 8M DMX

* Order-made available.

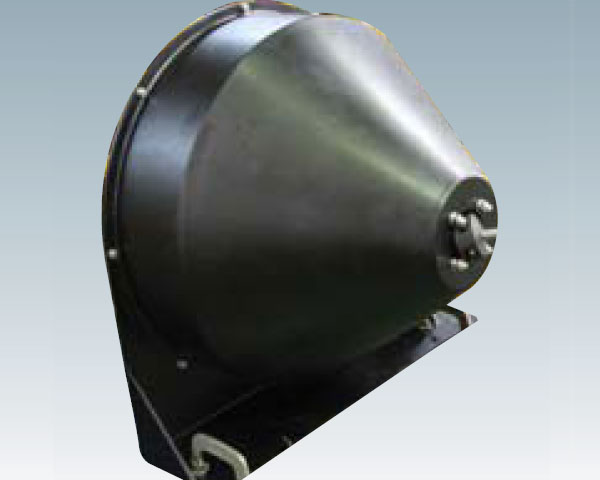

SDC-SL Type Cable Reel
  • Use : When delivering signals out of certain capacity, Hz, or range.
  • Features : Slip ring less(Static cable reel), High capacity sound output and HD video signal.
SDC-M Type Cable Reel

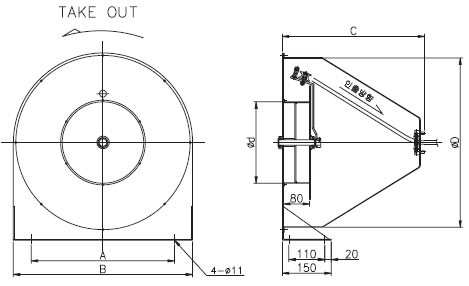

Model ФD Фd A B C Application scope Note
SDC-SL 1 360 200 240 350 360 Under O.D 8Ф * 8M MIC
SDC-SL 2 520 250 440 550 440 Under O.D 11Ф * 15M SPEAKER PO.

* Order-made available.


SDC-SL Type Cable Reel

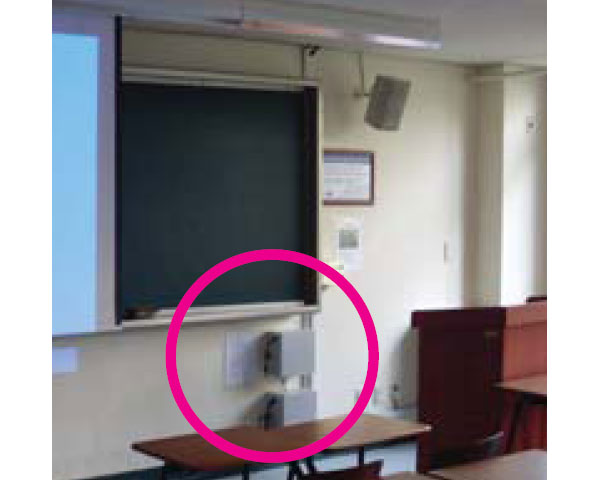

  • Use : Religious arena, schools, etc
  • Feature : Adherence on wall or cast-in-place ratche equipment are appled
SDC-M TYPE

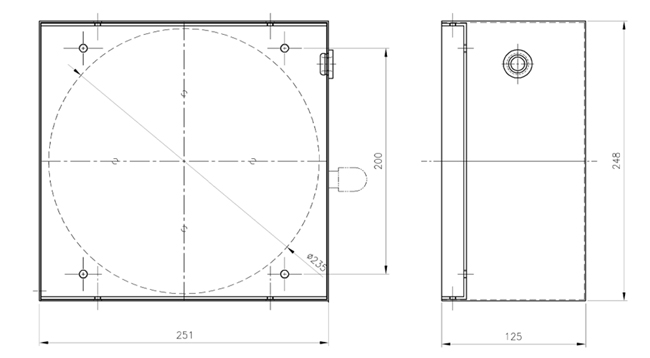

Model ФD Фd W H Application scope Note
SDC-M1 235 128 248 248 Under 1SQ * 5C * 8M MIC.

* Order-made available.
