Cable Reel For Stage System

For Stage equipments

For lighting equipments

  • Fixed type on batten : Power suply and signal delivery of batten, suspension, and bridges.
  • Fixed type on stage : power supply on sliding stages.
  • Variable-use type : delivering DMX signals and power supplying for sliding towers and floor lighting equipments
  • Common feature : Spring-driven way or motor-driven way, high-durability, easy maintenance.
  • Features : In case of the fixted type on battern, battens of various lighting equipments are applicable as the cable reels stand the weight of cable itself.

This type of the reels is classified to fixed type on stage and variable-use type.

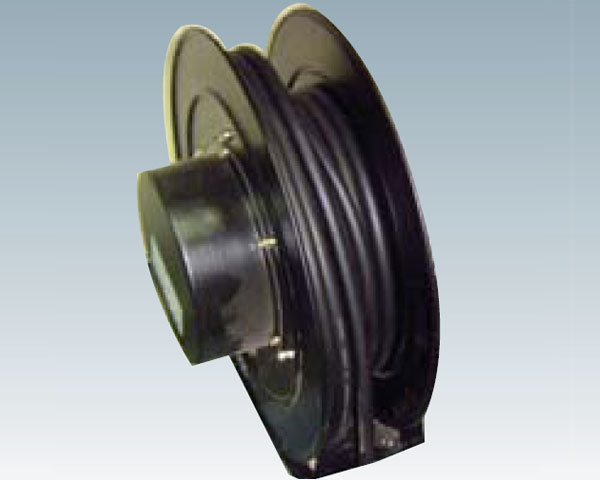

SCC Type Cable Reel
  • Use : DMX signal delivery, power suply of lighting equipments
  • Features : internal spring, easy maintenence
SCC Type Cable Reel
SCC Type Cable Reel

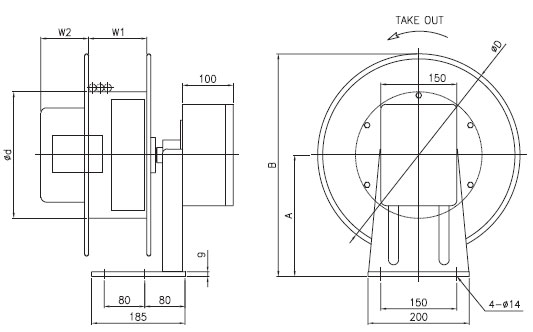

SCC TYPE
Model ФD Фd W1 W2 A B Application scope Note
SCC 1 500 350 140 110 250 490 Under 6SQ * 8C * 8M AP. DMX
SCC 2 550 350 140 200 315 590 Under 6SQ * 13C * 6M 6SQ미만 *13C미만 * 6M미만 CT. POWER

* Order-made available.

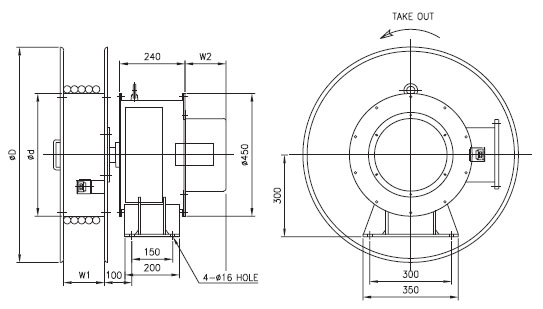

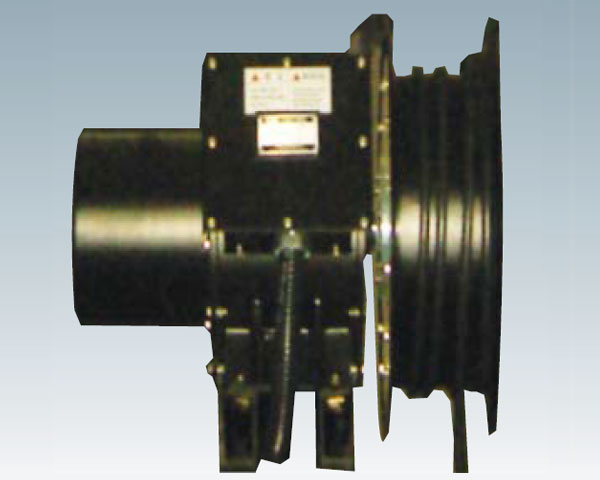

SCS Type Cable Reel
  • Use : power supplement for lighting equipments
  • Features : Internal spring, For long distance
SCS Type Cable Reel
SCS Type Cable Reel
STS TYPE
Model ФD Фd W1 W2 Application scope Note
STC 1 800 450 240 220 Under 6SQ * 15C * 20M SUS. POWER

* Order-made available.

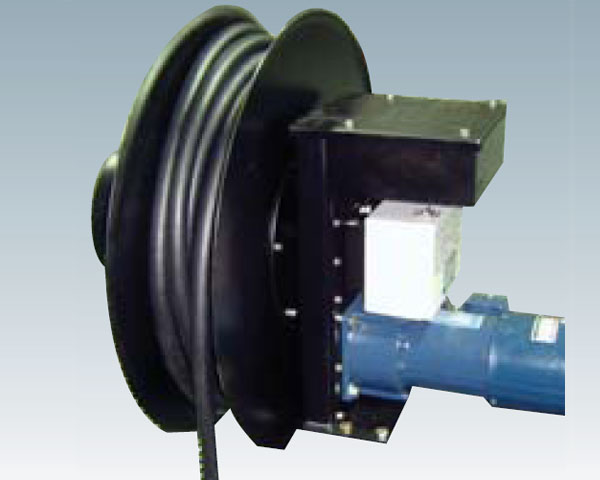

SCC-M Type Cable Reel
  • Use : Sliding lighting tower, power supply and signal delivery of sliding stages
  • Features : Motor-driven, Various designs for different installment conditions
SCC-M Type Cable Reel
SCC-M Type Cable Reel
STS TYPE
Model ФD Фd W1 W2 Application scope Note
SCC-M1 650 300 130 180 Under 6SQ * 15C * 30M TOWER PO.

* Order-made available.
