Cable reel (motor type)

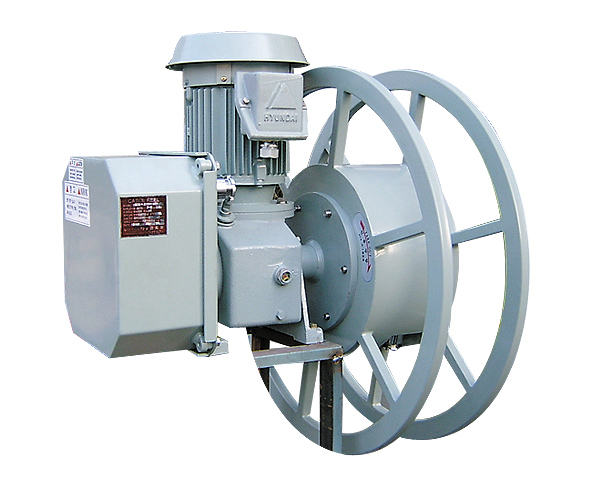

Friction Motor
FRICTION MOTOR TYPE is consisted of Three phases induction motor, Friction reducer, Silp ring case and Drum. Friction reducer is made by special alloyed steel and is generating friction torque by rewinding cable.no need to have brake.

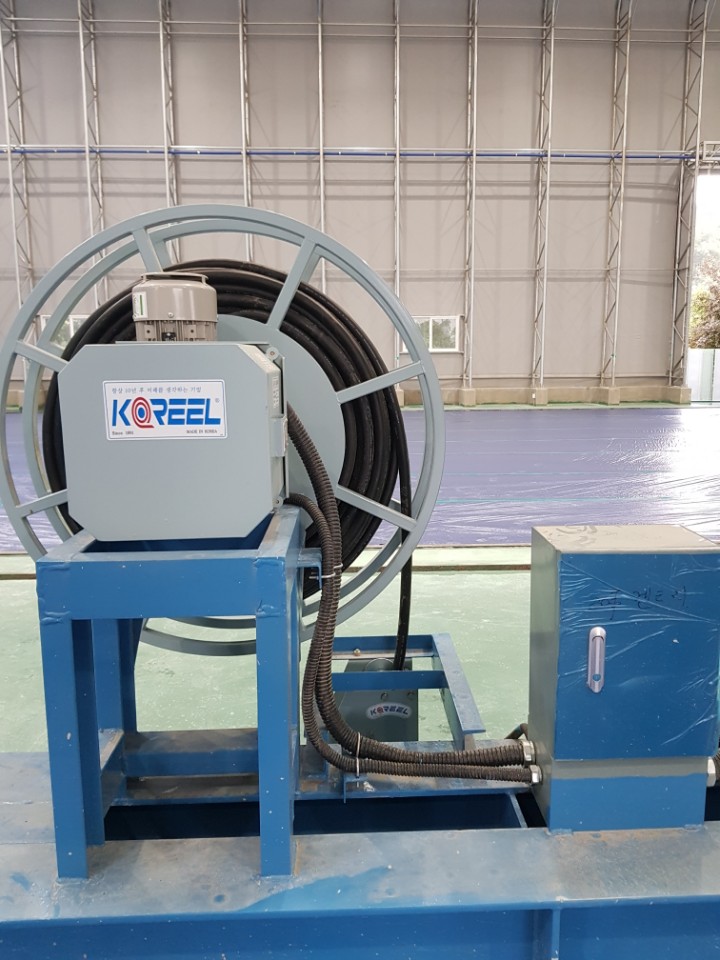

Usage example in a field(such as a factory)
Zoom-in
Assembly drawing of Friction Motor
Specification of Friction Motor
| NO. | SLIPRING CURRENT |
CABLE Specification (ROUND TYPE) |
ØA | C | WINDING LENGTH (ØB ) | |||
|---|---|---|---|---|---|---|---|---|
| 40m | 60m | 80m | 100m | |||||
| 1 | 30A | 5.5sq × 4c | 400 | 100 | 700 | 760 | 800 | 860 |
| 2 | 45A | 8sq × 4c | 450 | 100 | 860 | 960 | 110 | 120 |
| 3 | 60A | 14sq × 4c | 500 | 100 | 960 | 1100 | 1200 | - |
| 4 | 100A | 22sq × 4c | 550 | 100 | 1100 | 1200 | - | - |
