Cable reel (motor type)

Induction Motor

  • Wound-rotor type motor used
  • Chain operated cable reel with decelerator
  • High Voltage Cable and Power Cable are applied
  • Suitable for Big Size Crane
  • Long distance driving is possible
  • Succesive driving is available
  • High Voltage(AC 3.3Kv, 6.6Kv, 11Kv)

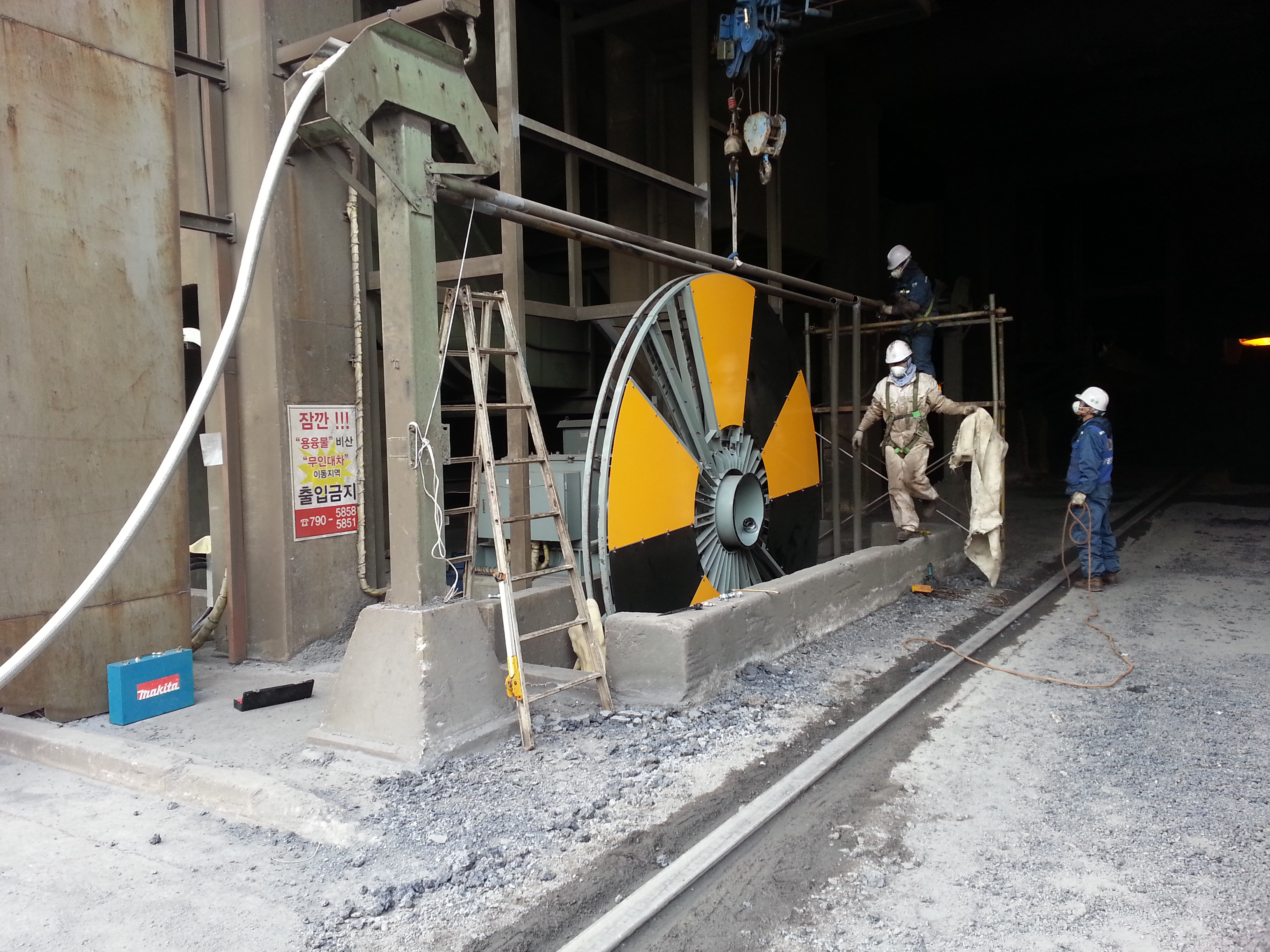

Induction Motor Usage Example
Assembly Drawing of Intuction Motor
(AC 6.6KV HIGH VOLTAGE INDUCTION MOTOR TYPE CABLE REEL)
Compositions of Induction Motor
  1. 1. BRAKE
  2. 2. LIMIT SWITCH
  3. 3. INDUCTION CRANE MOTOR
  4. 4. UCP BEARING
  5. 5. CONTROL SLIP RING
  6. 6. COUPLING
  7. 7. POWER SLIP RING
  8. 8. REDUCER
  9. 9. UCP BEARING
  10. 10. CHAIN SPROCKET
  11. 11. UCP BEARING
  12. 12. DRUM BOSS
Specification of Induction Motor
NO. SLIPRING
CURRENT		 CABLE Specification
(ROUND TYPE)		 ØA C WINDING LENGTH (ØB )
100m 150m 200m 250m
1 200A 60sq × 4c 1600 85 3800 4400 5000 5400
2 300A 60sq × 4c 1600 95 4000 4700 5300 5800
3 400A 60sq × 4c 1600 105 4200 4900 5500 -
