Cable reel (motor type)

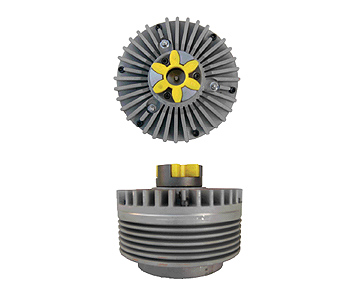

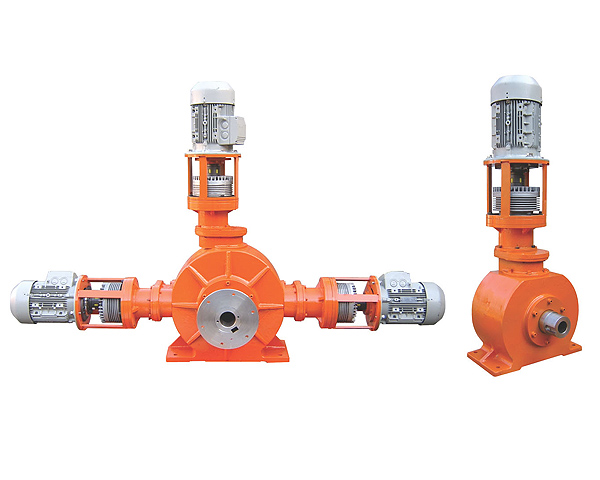

Magenet Coupler
- Flange type motor is applied for it
- Torque generated by magnetic force of a permanent magnet block and a disk magnetism
- Transmission structure of torque by Non-contacted coupling system
- Torque of variable structure by controlling of Air Gap.
- Fan controller of special aluminum in Magnet housing to emit heats.
- Easy to maintain and repair by compact size
- Self controlled drivend system for over tension of Cable

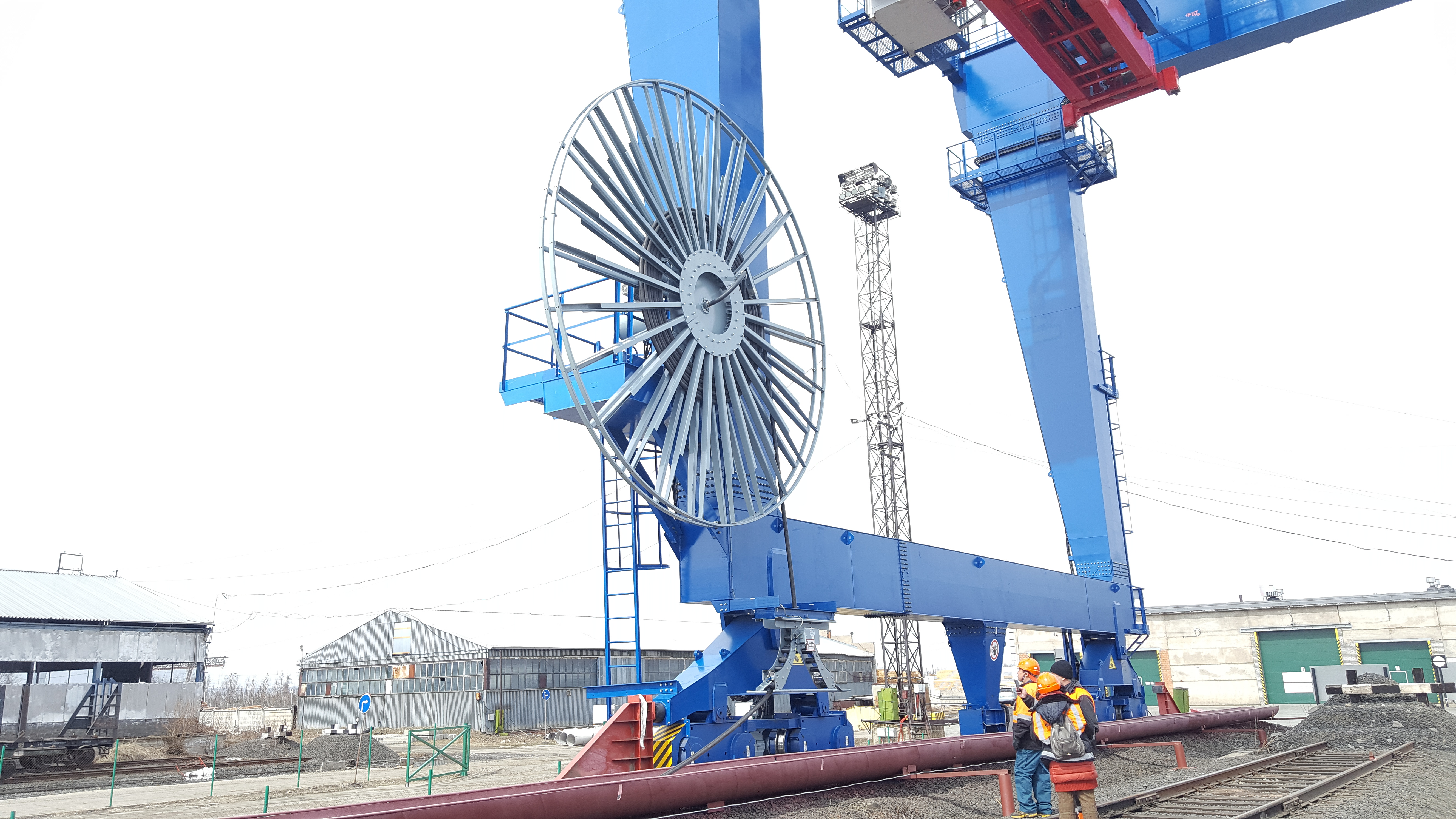

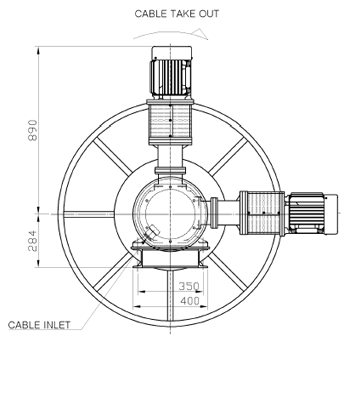

Usage example in a field
STANDARD EXPLANATION

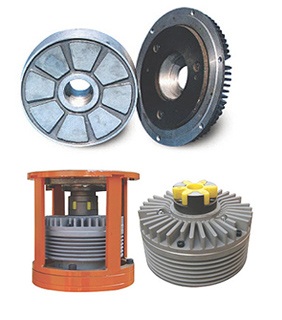

Compositions of Magnet Coupler
- Flange Motor
- Back Stop Bearing
- Jaw Coupling
- Magnet Disk
- Magnet Block
- Planetary
- Secondary Gear Box
- Bevel Main Gear Box

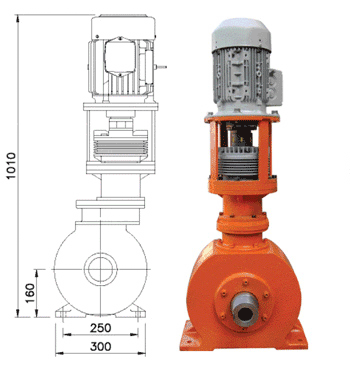

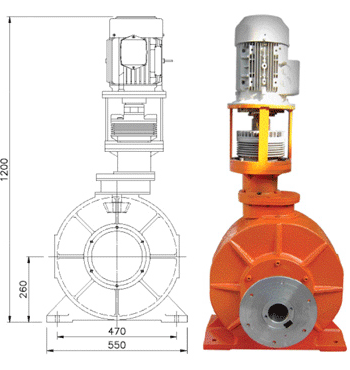

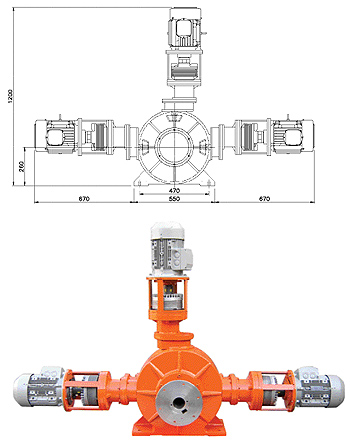

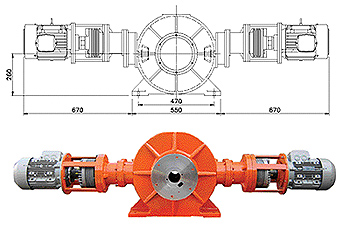

Appearance Drawing of Magnet Coupler
| TYPE | SKMD1 - L |
|---|---|
| TORQUE | MAX. 45Kg-m |
| CABLE SPEC. | 8sq x 4c∼38sq x 4c |
| CABLE LENGTH | 50m ∼ 100m |
| TYPE | SKMD1 - M1 |
|---|---|
| TORQUE | MAX. 70Kg-m |
| CABLE SPEC. | 14sq x 4c∼60sq x 4c |
| CABLE LENGTH | 50m ∼ 100m |
| TYPE | SKMD1 - M2 |
|---|---|
| TORQUE | MAX. 140kg-m |
| CABLE SPEC. | 38sq x 4c∼100sq x 4c |
| CABLE LENGTH | 50m ∼ 100m |
| TYPE | SKMD1 - M3 |
|---|---|
| TORQUE | MAX. 210Kg-m |
| CABLE SPEC. | 60sq x 4c∼200sq x 4c |
| CABLE LENGTH | 50m ∼ 150m |

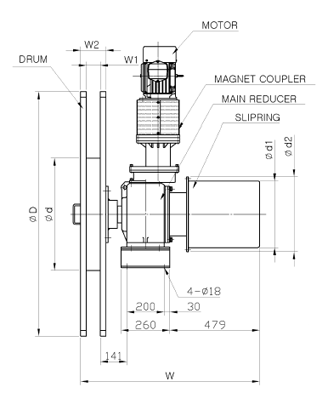

Assembly Drawing of Magnet Coupler

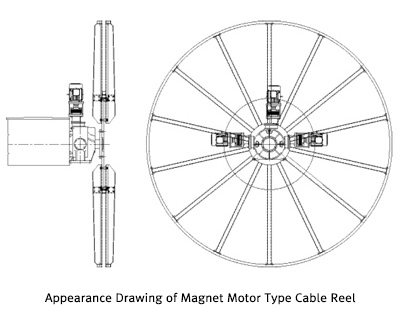

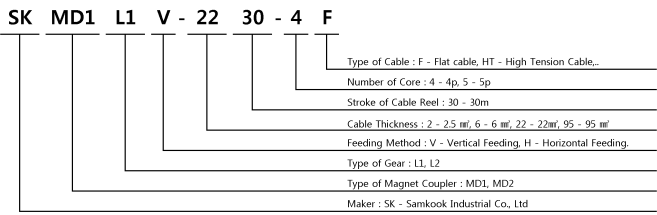

Specification of Magnet Motor Type Cable Reel
| TYPE | TORQUE | CABLE SPEC. | WINDING SPEED | FEEDING METHOD | Acceleration Time |
|---|---|---|---|---|---|
| SKMD1L1V-2220-3 | Max. 50kg-m | PNCT 22SQ*4C | Max. 50m/min | Vertical Feeding Type |
1.0 sec. |
| SKMD1L2V-2530-4 | Max. 80kg-m | PNCT 25SQ*4C | Max. 25m/min | Vertical Feeding Type |
1.0 sec. |
| SKMD1M2V-3545-4 | Max. 90kg-m | PNCT 35SQ*4C | Max. 20m/min | Vertical Feeding Type |
1.0 sec. |
| SKMD1L1H-2550-4F | Max. 40kg-m | PNCT-F 25SQ*4C | Max. 30m/min | Horizontal Feeding Type |
3.0 sec. |
| SKMD1L2H-9570-4F | Max. 75kg-m | PNCT-F 95SQ*4C | Max. 40m/min | Horizontal Feeding Type |
3.0 sec. |
| SKMD1M1H-120100-4S | Max. 90kg-m | PNCT-F 120SQ*4C | Max. 50m/min | Horizontal Feeding Type |
3.0 sec. |
