Cable reel (motor type)

Inverter Controlling Cable Reel

  • Cope with high-torque and speed
  • Automatic Wrapping Speed Control(Depending on the Inverter Torque Setting)
  • Optimum Torque Control Operation
  • (Encoder + PG Card + Inverter)
    Real time communication and monitoring
  • Life extension of machine and Energy saving
    through Soft Start and Soft Stop funtion
  • Optimized Controlling System
    by Company’s Know-how over decades

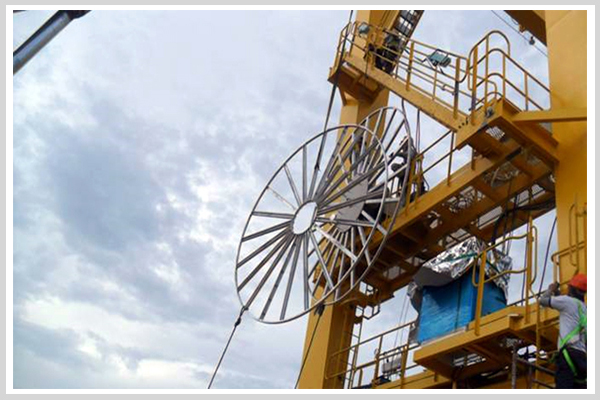

Inverter Usage example in a field

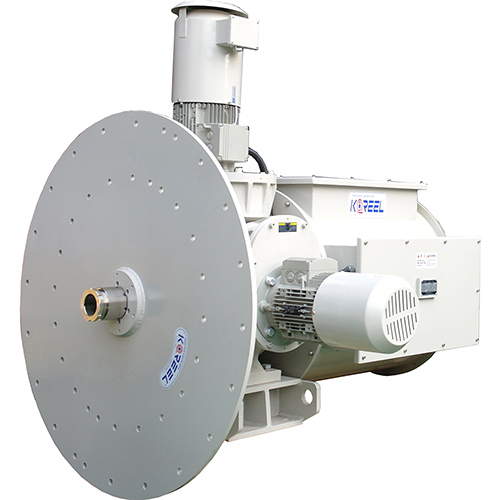

Image of Inverter Controlling Cable Reel
크게보기 Zoom-in

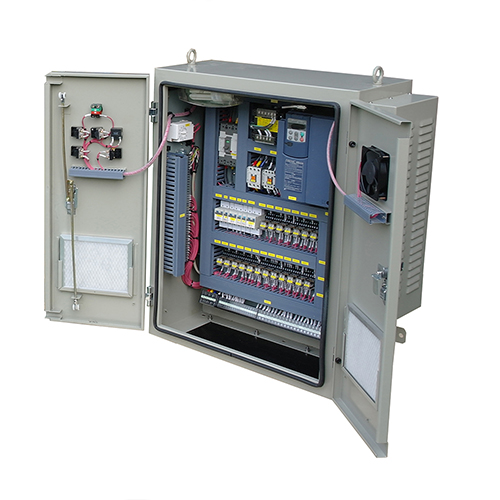

Image of Control panel
크게보기 Zoom-in

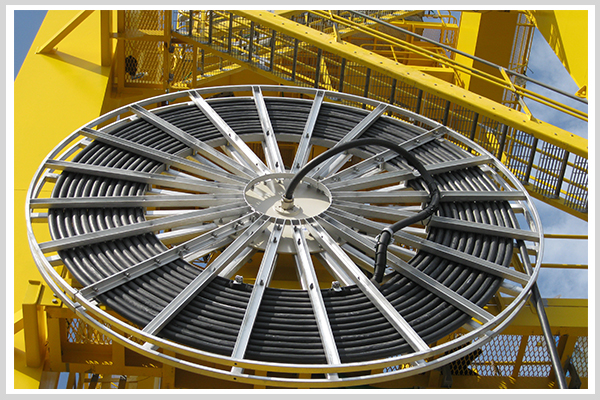

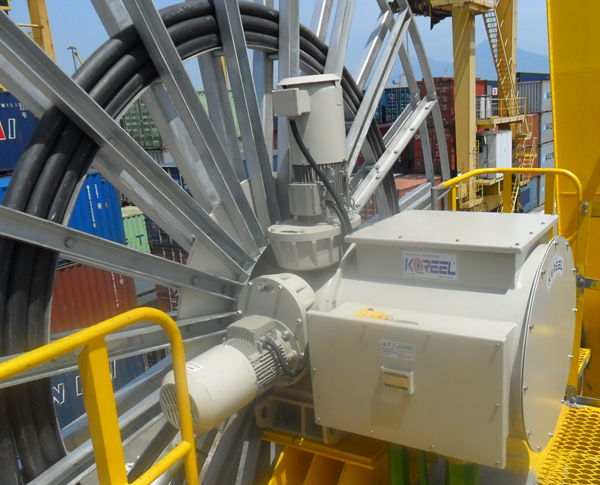

Usage example in a field
크게보기 Zoom-in

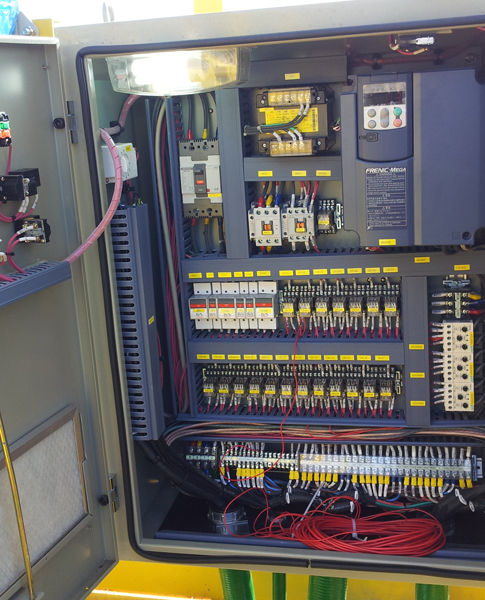

Image of Control panel applied in a field
크게보기 Zoom-in

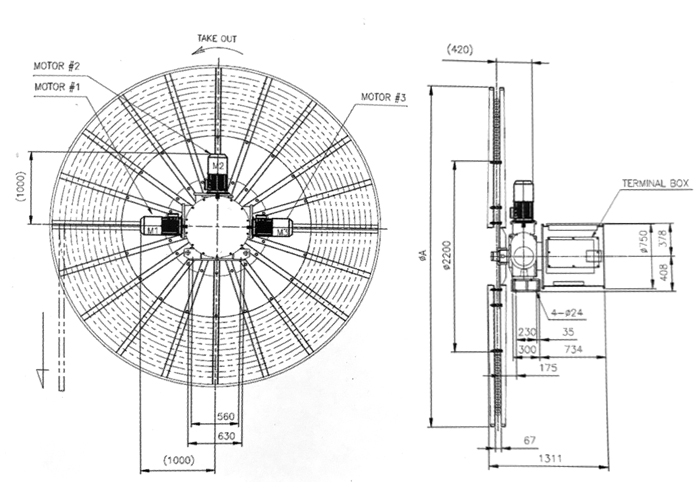

Assembly Drawing of Inverter
Specification of Inverter
TYPE Inverter Cable
TORQUE MAX 350KG-M
SPEED 150M/MIN
CABLE SPEC. 50sq×4c ~ 240sq×4c
CABLE LENGTH 50m~300m

Cable Specification Length Note
3×120SQ+2×70SQ+12FO 150M Hybrid Fiber Optical Cable Reel
3×70SQ+2×25SQ+8FO 520M Hybrid Fiber Optical Cable Reel
3×95SQ+2×25SQ+8FO 200M Hybrid Fiber Optical Cable Reel
