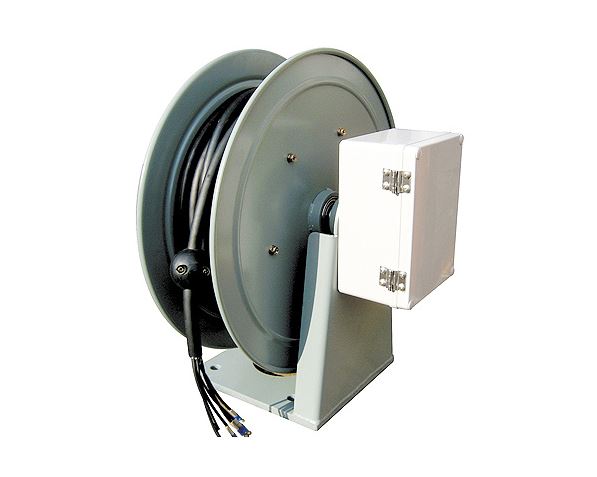

Cable reel (spring type)

ECC TYPE



  • Rated Voltage : AC.DC 600V
  • Feature : Compact size, Water-resistance
  • Winding speed should be under 30m/minute
  • Painted color : 7.5BG 6/1.5
  • Heat resisting property : -10℃~+50℃
  • Contact resistance : 10mΩ(at 60 rpm)

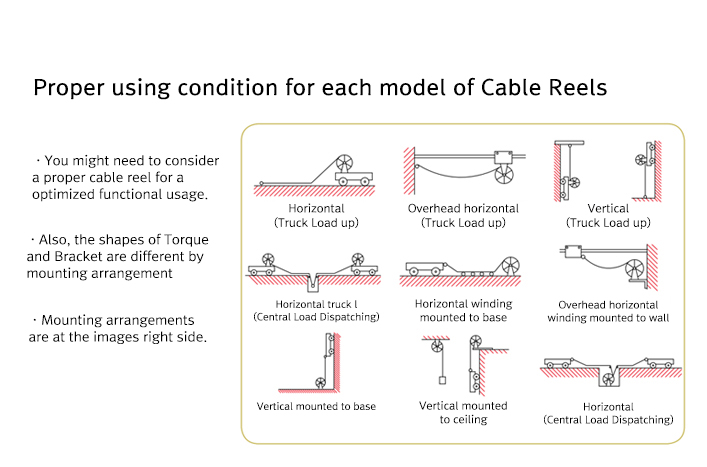

Horizontal winding operation mounted to carriage(Movable Reel)
Horizontal winding operation mounted to base(fixed reel type)
Overhead horizontal winding operation mounted to wall(fixed reel type)
Vertical winding operation mounted to wall or ceiling(fixed reel)

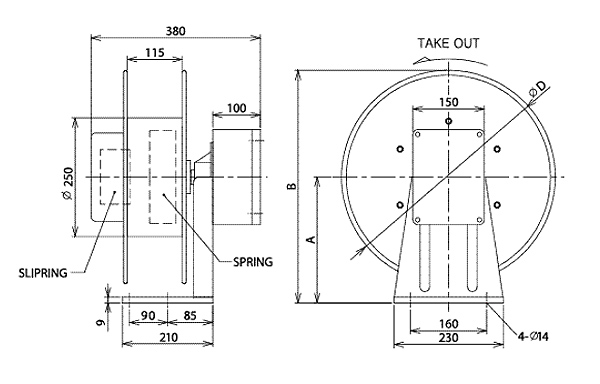

ECC25
ECC25
Zoom-in Zoom-in
Drawing
/Classification		 A B D
1 240 440 400
2 265 490 450
3 290 540 500

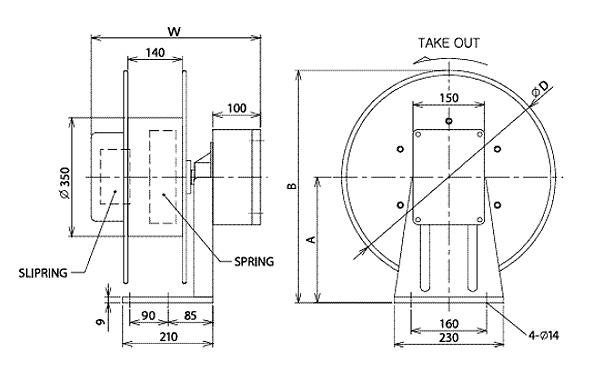

ECC35
ECC35
Zoom-in Zoom-in
Drawing
/Classification		 A B D W
Pole
2~6		 Pole
6~12
4 290 540 500 410 510
5 315 590 550 410 510
6 340 640 600 410 510
7 365 690 650 410 510

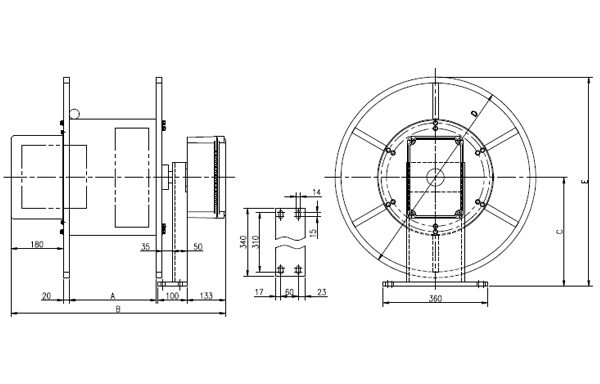

ECC-623-1
Zoom-in Zoom-in
Drawing
/Classification		 A B C D E
ECC-610-16 250 738 355 650 680
ECC-616-16 250 738 375 690 720
ECC-623-16 300 738 375 690 720
