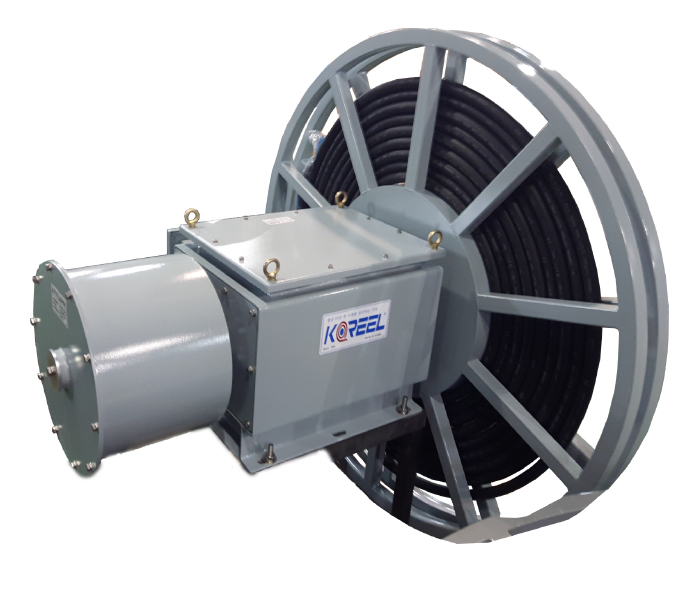

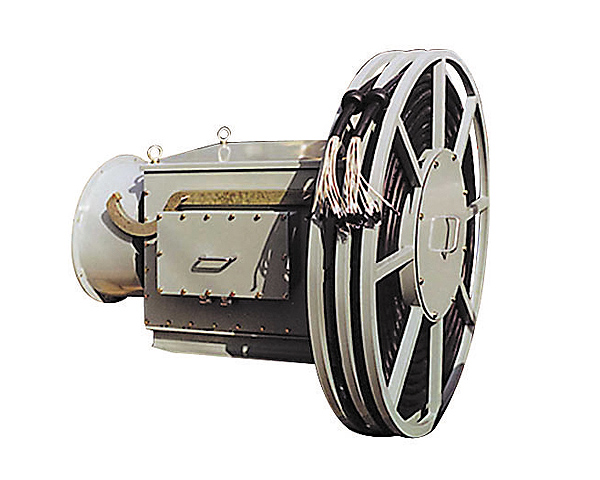

Cable reel (spring type)

EAJ TYPE



  • Rated Voltage : AC.DC 600V
  • Feature : Multipolar, Water-resistance, Extrinsic control of tensile force
  • Winding speed should be under 30m/minute
  • Painted color : 7.5BG 6/1.5
  • Heat resisting property : -10℃~+50℃
  • Contact resistance : 10mΩ(at 60 rpm)

Horizontal winding operation mounted to carriage(Movable Reel)
Horizontal winding operation mounted to base(fixed reel type)
Overhead horizontal winding operation mounted to wall(fixed reel type)
Vertical winding operation mounted to wall or ceiling(fixed reel)
EAj60
EAj60
EAj60
EAj60

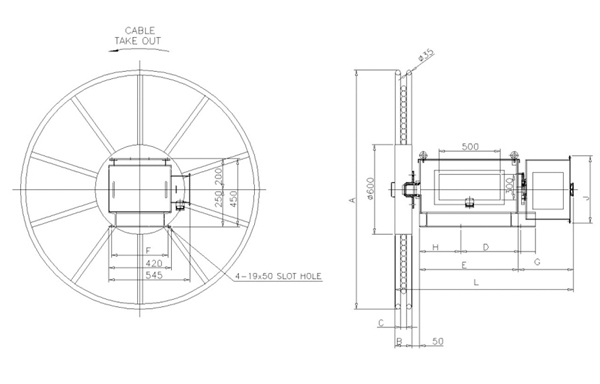

Drawing
/Classification		 SP Pole(P) E F L S
23 D1 2~5 250 350 470 750
24 D1 6~10 350 450 615 900
25 D1 11~12 350 450 715 1000
26 D2 2~5 250 350 470 750
27 D2 6~10 350 450 615 900

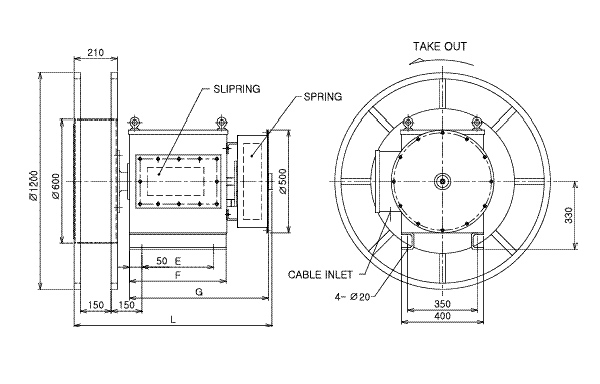

Drawing
/Classification		 SP pole(P) E F L S
28 D2 11~12 350 450 715 1000
29 D3 2~5 250 350 520 830
30 D3 6~10 350 450 665 980
31 D3 11~12 350 450 765 1100
