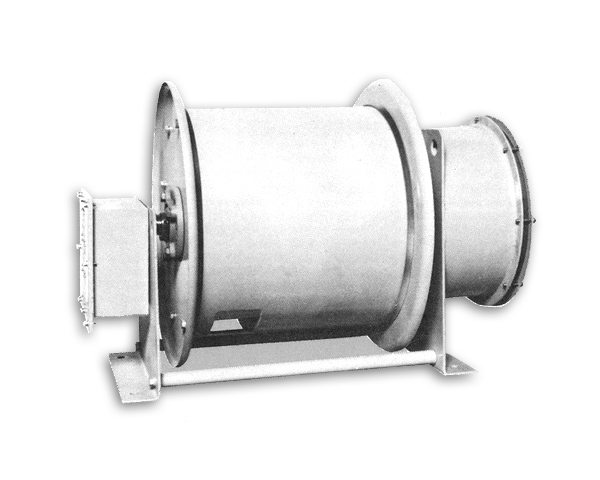

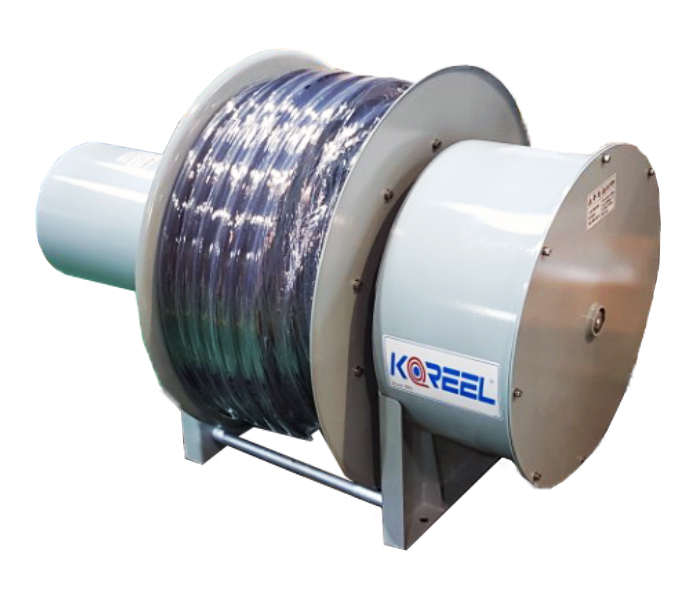

Cable reel (spring type)

EU TYPE



  • Rated Voltage : AC.DC 600V
  • Feature : Multipolar, Water-resistance
  • Winding speed should be under 30m/minute
  • Painted color : 7.5BG 6/1.5
  • Heat resisting property : -10℃~+50℃
  • Contact resistance : 10mΩ(at 60 rpm)

Horizontal winding operation mounted to carriage(Movable Reel)
Horizontal winding operation mounted to base(fixed reel type)
Overhead horizontal winding operation mounted to wall(fixed reel type)
Vertical winding operation mounted to wall or ceiling(fixed reel)

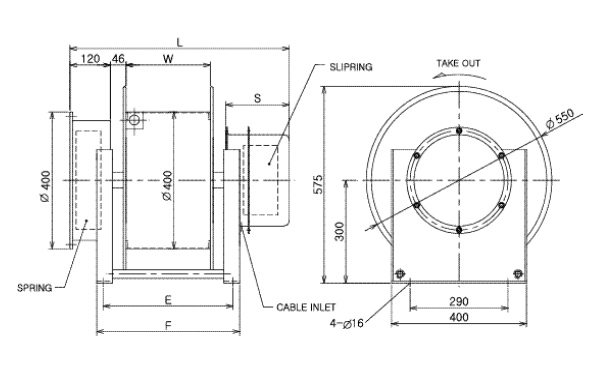

EU40
Drawing
/Classification		 SP Pole E F L S W
8 D1 2~6 385 424 650 180 250
9 D1 7~10 485 524 850 280 350
8-1 D2 2~6 385 424 650 180 250
9-1 D2 7~10 485 524 850 280 350

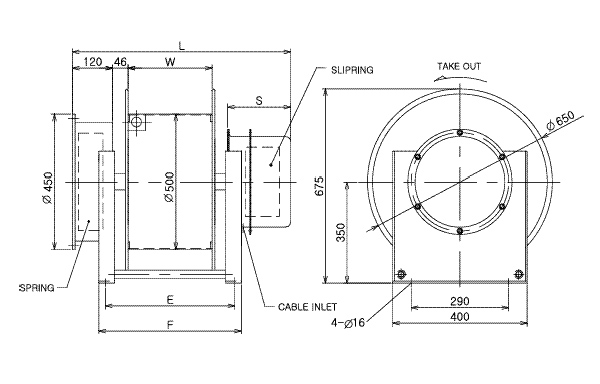

EU50
Drawing
/Classification		 SP Pole E F L S W
10 D1 2~6 385 424 650 180 250
11 D1 7~10 485 524 850 280 350
12 D2 3~6 385 424 650 180 250
13 D2 7~10 485 524 850 280 350
