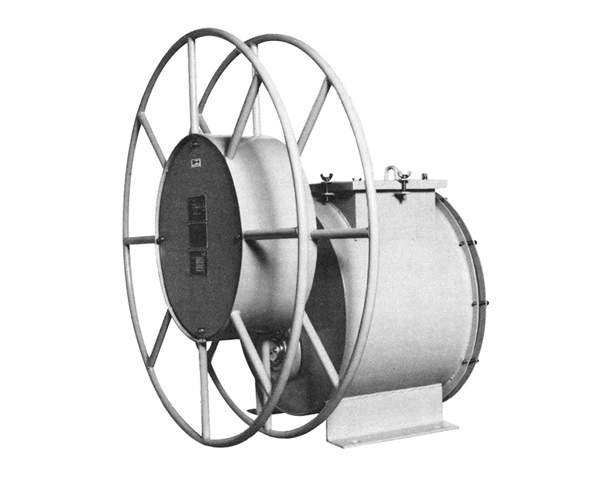

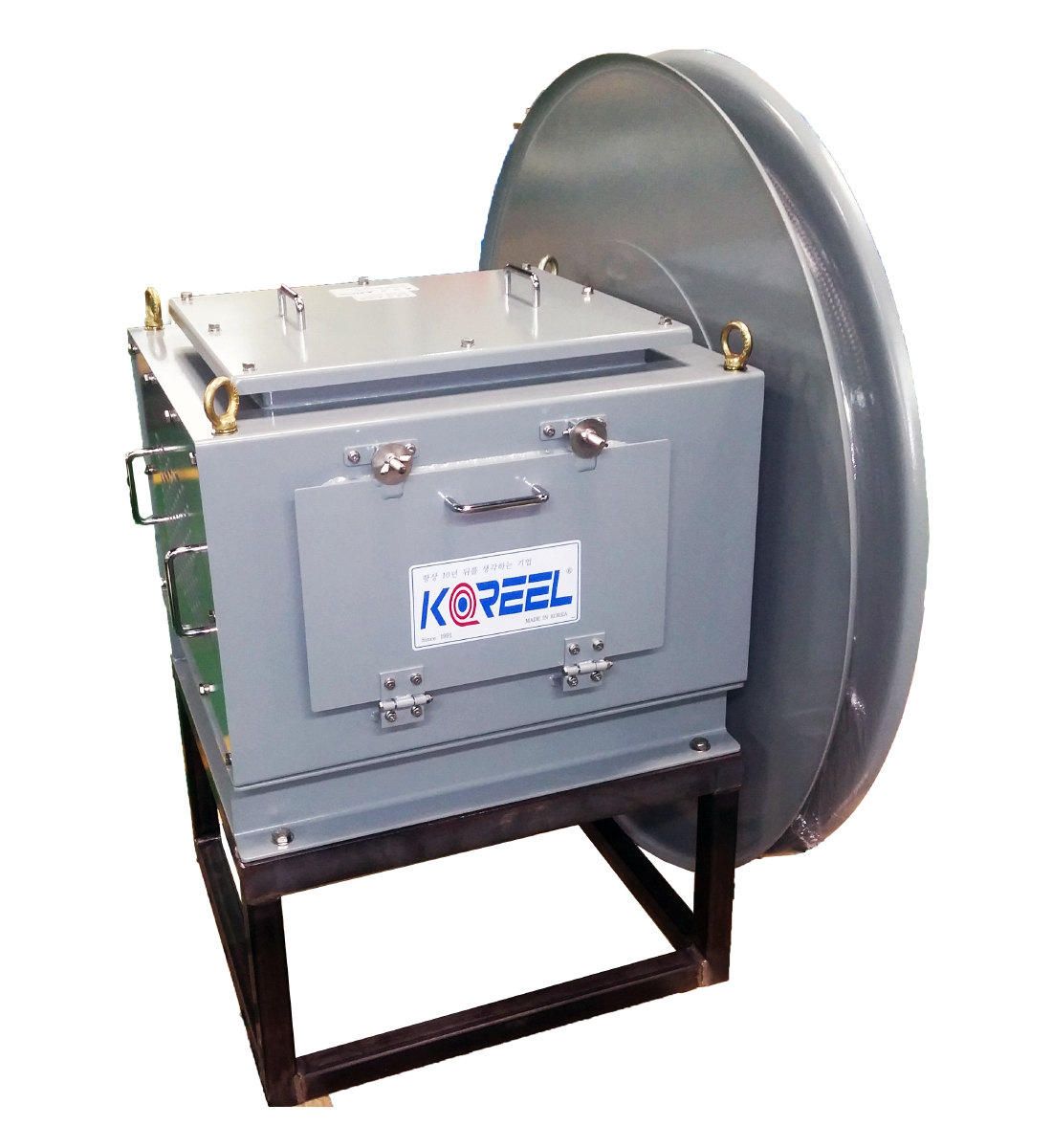

Cable reel (spring type)

EA TYPE



  • Rated Voltage : AC.DC 600V
  • Feature : Long distance driving, Water-resistance
  • Winding speed should be under 30m/minute
  • Painted color : 7.5BG 6/1.5
  • Heat resisting property : -10℃~+50℃
  • Contact resistance : 10mΩ(at 60 rpm)

Horizontal winding operation mounted to carriage(Movable Reel)
Horizontal winding operation mounted to base(fixed reel type)
Overhead horizontal winding operation mounted to wall(fixed reel type)
Vertical winding operation mounted to wall or ceiling(fixed reel)

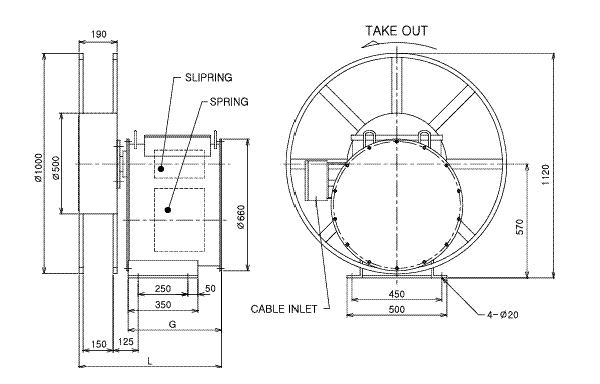

EA50
Drawing
/Classification		 SP Pole(P) G L
32 D1 2~8 400 650
33 D1 9~12 475 725
34 D2 2~8 400 650
35 D2 9~12 475 725
36 D3 2~8 400 650
37 D3 9~12 475 725
EA50
Drawing
/Classification		 SP Pole(P) G L
38 D2 2~6 400 650
39 D2 9~12 475 725
40 D3 2~8 400 650
41 D3 9~12 475 725

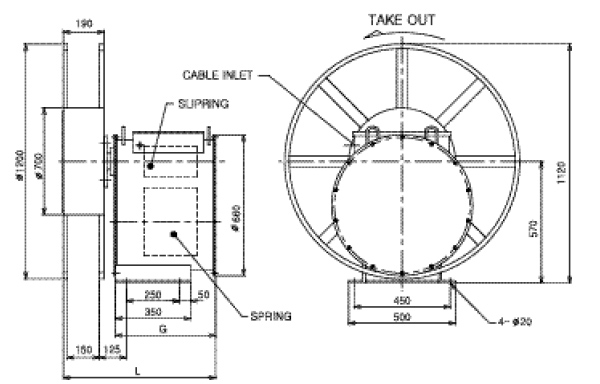

EA70
Drawing
/Classification		 SP Pole(P) G L
42 D1 2~6 400 650
43 D1 9~12 475 725
44 D3 2~8 400 650
